Sanwa Electric Instrument Co., Ltd.

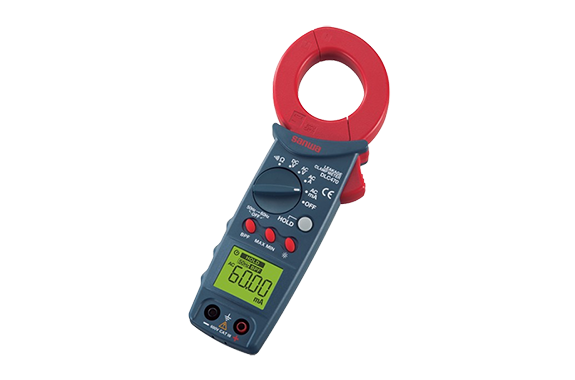

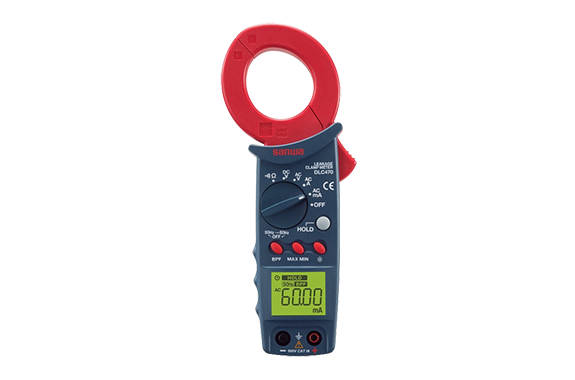

Sanwa DLC470 Clamp Meters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DLC470
Features
Multifunctional leakage clamp meter
Extract frequency range of mainly ACmA 50Hz/60Hz and ACA, with band-pass filter (BPF) function.
MAX/MIN value hold
Auto power off (30 min./Cancelable)
Leakage current measurement Resolution 0.01mA
Specifications
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACmA | 60.00mA/600.0mA | ±(1.2%+5) | 0.01mA |
| ACA | 60.00A/400.0A | ±(1.2%+5) | 0.01A |
| ACV | 600.0V | ±(1.2%+5) | 0.1V |
| DCV | 600.0V | ±(1.0%+2) | 0.1V |
| Resistance | 999.9Ω | ±(1.0%+8) | 0.1Ω |
| Continuity | Buzzer sounds at 30Ω or below Open voltage： approx. 0.9V | ||
| Sampling rate | 2 times/sec. |
| Bandwidth | 40-400Hz |
| Display | 6000 (A/V)/9999 (Ω) |

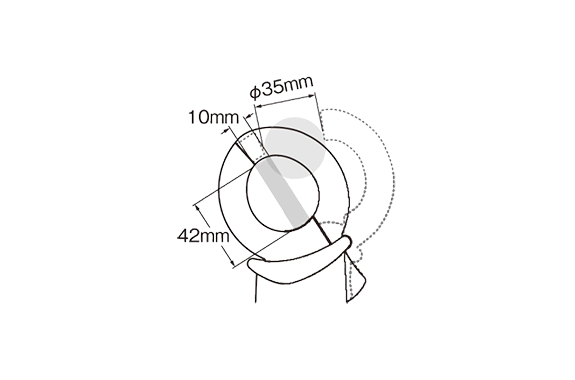

| Clamp diameter/Conductor size | Φ35mm/10x40mm |
| Battery | LR03×2 |
| Battery life | Approx. 42 hrs.（Alkaline battery/Backlight off) |
| Size/Mass | H206×W83×D38mm/Approx. 320g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
