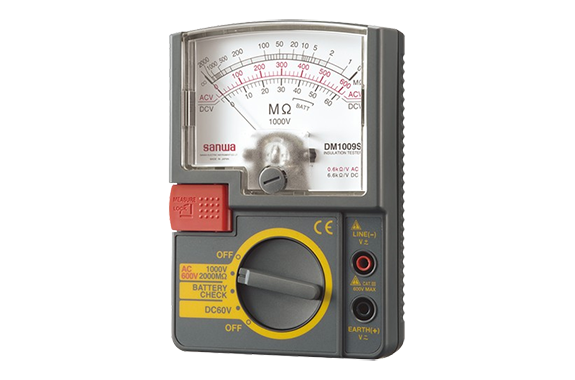

Sanwa DM1009S Insulation Testers
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: DM1009S
Features
1000V/2000MΩ single range, Lightweight design
One-shot or continuous measurement push switch
DCV measurement range (DC60V)
Auto discharge function
Inner battery check range
Shoulder Strap
Specifications
| Scale(MΩ) | 1～2～1000～2000MΩ | |
| Tolerance | ± 5% of reading（1st effective measurement range : written in thick print above） ±10% of reading（2nd effective measurement range : written in small type above) | |
| ACV | 600V | |
| Tolerance | Within ±5% of the max. scale value(50～60Hz sine wave) | |
| DCV | 60V | |
| Tolerance | Within ±5% of the max. scale value | |
| Rated current | 1.0～1.2mA | |
| Battery | 6LF22/6LR61(9V alkaline battery)x1 | |
| Size/Mass | H144×W99×D43mm/Approx. 310g | |
| Safety standard | IEC61010 CAT.Ⅲ 600V | |
