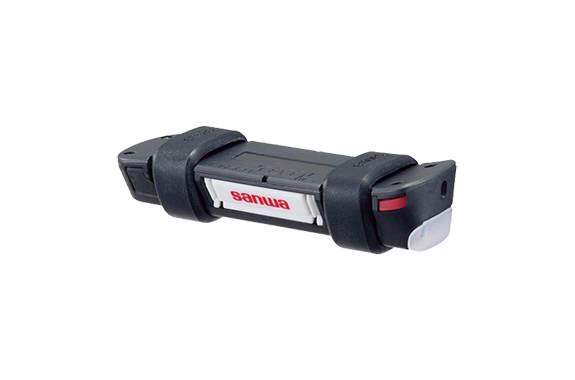

Sanwa KDP10 Voltage Detector Supporter
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: KDP10
Features

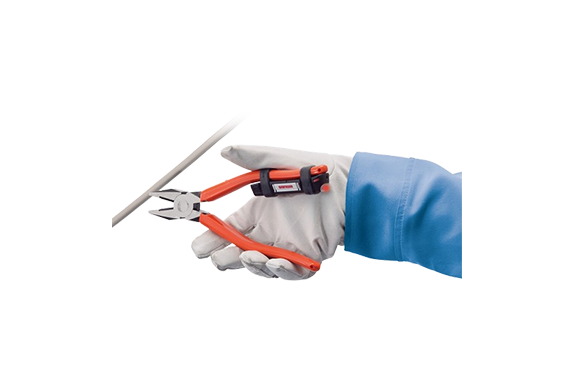

This Voltage Detector Supporter prevents accidents caused by cutting live wires on commercial power cables (50 Hz/60 Hz). It attaches to 7 or 8-inch pliers to warn before cutting live lines, even when wearing gloves. It offers long battery life, with approximately 5 months in standby mode. Note that some pliers may not be compatible due to handle shape.
Specifications
| Detectable voltage level(reprensentative value) | Approx. AC60 V～600 V 50Hz/60Hz (wehn attached 7/8 inches plier handle) |
| Indicator | Buzzer and LED |
| Cable type for live line detection | Sheathed cable(Unshielded cable) |
| Powe supply | LR44 1.5V x 2 pcs. |
| Battery life | Approx. 5 months (stanby mode) |
| Dimensions/mass | H23×W77×D13 mm / Approx.13 g |
This instrument is not a voltage detector.
This instrument is not a voltage detector, and a cutting tool with this product attached is also not a voltage detector. Never use the instrument for voltage detection. Use a commercially available voltage detector (our product model number KD2) for voltage detection.
Do not apply a strong shock to the product body, as it may break.
Never allow the metal part of the cutting tool, with this product mounted, to touch the charging part.
Be sure to check the operation of this product with a known voltage before use.
Since the product works with capacitive coupling, it may not be detectable depending on the condition of attaching, gripping, or surrounding environment.
As this product works for the commercial power supply frequency (50/60Hz only), a voltage such as secondary side of an inverter can not be detected.
