Sanwa Electric Instrument Co., Ltd.

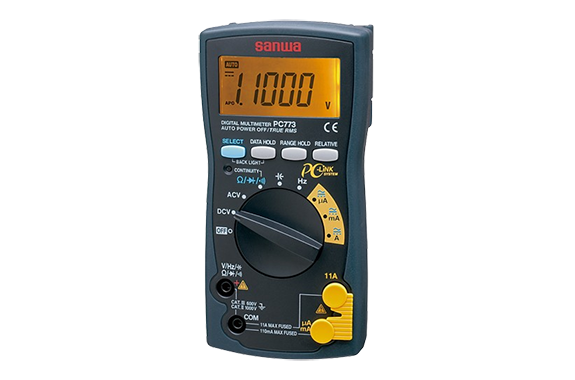

Sanwa PC773 Digital Multimeters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: PC773
Features
11000 counts
Best accuracy 0.28%
Double molding of elastic elastomer materials
AC/DC current measurable max.11A
Continuity buzzer and LED lamp
Auto power save(30min.)(cancelable)
Specifications
| Function | Measuring Range | Best Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCV | 110m / 1.1 / 11 / 110 / 1000V | ±(0.28% + 2) | 0.01mV | 10MΩ ～ 100MΩ |
| ACV | 110m / 1.1 / 11 / 110 / 1000V | ±(0.7% + 50) | 0.01mV | — |
| DCA | 110μ / 1100μ / 11m / 110m / 11A | ±(0.5% + 4) | 0.01μA | — |
| ACA | 110μ / 1100μ / 11m / 110m / 11A | ±(0.9% + 20) | 0.01μA | — |
| Resistance | 110 / 1.1k / 11k / 110k / 1.1M / 11M / 110MΩ | ±(0.3% + 6) | 0.01Ω | — |
| Capacitance | 11n / 110n / 1.1μ / 11μ / 110μ / 1.1m / 11m / 110mF | ±(2.0% + 20) | 0.001nF | — |
| Frequency | 110Hz / 1100Hz / 11kHz / 110kHz / 1.1MHz | ±(0.01% + 2) | 0.1Hz | — |
| Continuity | Buzzer & LED at < 30Ω (Open V ≈ 0.2V) | — | — | — |
| Diode Test | Open voltage ≈ 0.2V | — | — | — |
| Display | numeral display 11000 |
| Sampling rate | 4 times/sec. |
| Bandwidth | 45Hz～100Hz（110mV range), 45Hz～500Hz（1.1V range), 45Hz～1kHz（11Vrange and above, ACA) |
| Fuse | 315mA/1000V, breaking capacity 30kA 12A/1000V、breaking capacity 30kA |
| Battery | R6x2 |
| Battery life | Approx.200h (manganese battery) at DCV range |
| Size/Mass | H166×W82×D44mm/360g |
| Safety | IEC61010 CAT.Ⅲ600V/CAT.Ⅱ1000V |
