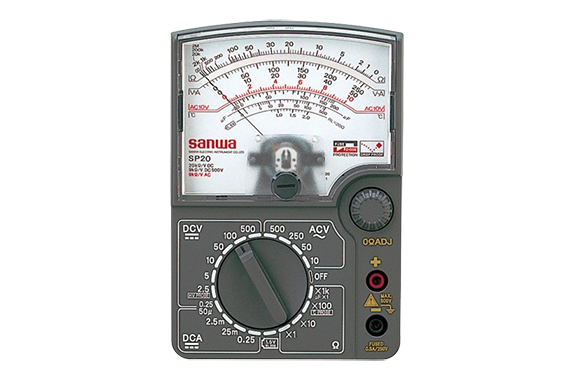

Sanwa SP20 Analog Multitesters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: SP20
Features
Provides DC high voltage and temperature measurement
Has 20 measurement functions to cover general measurement applications
500μF capacitor check function
With a tilt stand that helps to read the meter
Provides DC high voltage and temperature measurement with separately available accessory
Battery check
Specifications
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.25/2.5/5/10/50/100（20kΩ/V）/500V（9kΩ/V) | ±3% of full scale |
| ACV | 10/50/250/500V（9kΩ/V) | ±3% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | ±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Capacitance | 500μF | Approximate value |
| DC high voltage | DC25kV (Using separately available probe HV-10) | ±20% with probe |
| Temperature | -20 to + 200℃ (Using separately available probe T-THP) | ±3% (Using T-THP) |
| Battery check | 1.5V (1.0～2.0V) | Approximate value |
| Frequency characteristic | AC10V range 40Hz to 100kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse |
| Size/Mass | H144×W99×D41mm/Approx. 270g |
※The value in at DCV and ACV is input resistance
