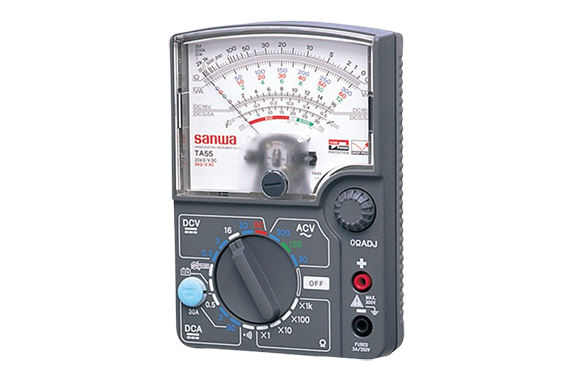

Sanwa TA55 Analog Multitesters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: TA55
Features
30A range supporting automobile measurement
Improved visibility with color matching of scale and range selector switch
Continuity check function with beeper sound
Stand to make easy to read the scale
Measurable up to DCA30A(300A using an optional clamp)
Battery check(12V battery only)
Specifications
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.3/3/16/30/60V（20kΩ/V) | ±3% of full scale |
| ACV | 30/120/300V（9kΩ/V) | ±4% of full scale |
| DCA | 0.5/3/30A | ±5% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Continuity | ≦ approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V | |
| Battery check | For 12V automobile battery | |
| Frequency characteristic | 40Hz to 5kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0020 Φ6.4x30mm 3A/250V 300A Glass fuse |
| Size/Mass | H142×W97×D38mm/Approx. 300g |
The value in （ ）at DCV and ACV is input resistance
