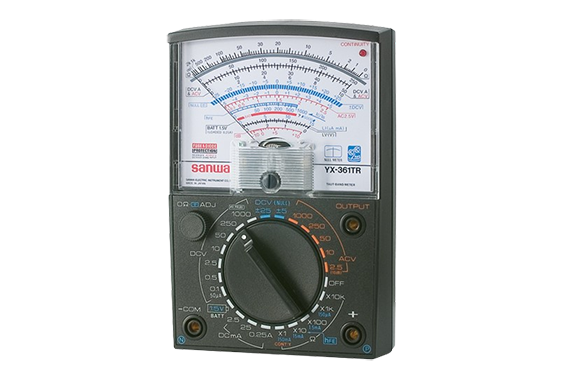

Sanwa YX-360TR Analog Multitesters
Manufacturer: Sanwa Electric Instrument Co., Ltd
Model: YX-360TR
Features
Variety of measurement functions by using 24-contact switch
Employing 24-contact switch and plus alpha function enable you to enjoy a total of 33 functions
Zero center meter for ± DCV measurement
With LED for continuity check
With OUTPUT measurement terminal (series capacitor inserted)
Battery check
DC current gain (hFE) of transistor can be measured by using separately available hFE connector
Specifications
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.1/0.5/2.5/10/50/250/1000V（20KΩ/V) | ±2.5% of full scale |
| ±DCV | ±5/25V（40kΩ/V) | ±5% of full scale |
| ACV | 2.5/10/50/250/1000V（9kΩ/V) | ±3% of full scale (2.5/10V:±4% of full scale) |
| DCA | 50μ/2.5m/25m/0.25A | ±2.5% of full scale |
| Resistance | 2k/20k/200k/2M/20MΩ | ±3% of arc |
| Low-frequency output | -10～+62dB | ±3% of full scale (2.5/10V:±4% of full scale) |
| hFE | hFE： 0～1000 | ±3% of arc |
| Continuity | ≦ approx.10Ω: LED lights. Open circuit voltage: approx. 3V | |
| Battery check | 1.5V | |
| Bandwidth | 40Hz～20kHz(Less than AC50V : ±3% of full scale) |
| Battery | R6P(AA battery)1.5Vx2, 6F22(9V manganese battery)x1 |
| Fuse | F0301 Φ5x20mm 0.5A/250V 300A Glass fuse |
| Size/Mass | H150×W100×D37mm/Approx. 290g |
The value in at DCV and ACV is input resistance
