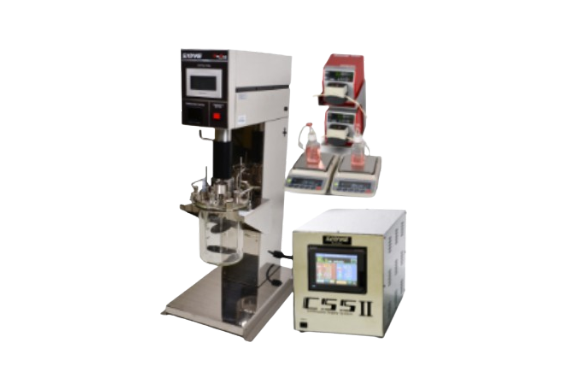

SATAKE CSS II BioReactor
Manufacturer: SATAKE MultiMix Corporation
Model: CSS II
Features
- The culture medium replacement system uses an electronic balance and feed pump controlled by the CSS II to supply and discharge culture medium based on set time and weight.
- The pump calculates the optimal revolutions from the time, flow rate, and weight, adjusting automatically every 0.1 seconds.
- The process stops once the specified time is reached.
- The standard pump, a Watson-Marlow 120U/DV analog control pump, and the A&D GX3002A electronic balance are commonly used in medicine manufacturing and culture labs.
Specifications
| Item | Specifications | ||||
|---|---|---|---|---|---|
| Name | Double Medium Replacement Controller | ||||
| Model | CSSⅡ | ||||
| Display range | Supply balance weight W1 | 0.01 – 3200.00 [g] *The specification can be customized in accordance with customer’s requirement. | |||
| Discharge balance weight W2 | |||||
| Supply balance weight W3 | |||||
| Discharge balance weight W4 | |||||
| Setting range | Supply pump P1 supply volume | 0.0 – 3200.00 [g] Display accuracy: ±0.5 [%] F.S. *The specification can be customized in accordance with customer’s requirement. | |||
| Discharge pump P2 discharge volume | |||||
| Supply pump P3 supply volume | |||||
| Discharge pump P4 discharge volume | |||||
| Culture medium supply / discharge time setting | 1 [minute] ~ 9999 [hours] 99 [minutes] | ||||
| Control type | Culture medium supply | Continuous culture medium supply control by weight and fluid feed pump | |||
| Culture medium discharge | |||||
| Record Data | Balance weight | W1, W2, W3, W4 | |||
| Pump discharge volume | P1, P2, P3, P4 | ||||
| MTA of outer surface | SUS304 (no paint), Indoor type, non-waterproof, non-explosion proof specification | ||||
| Installation | Tabletop | ||||
| Outer dimensions/weight | W260×D400×H225 [mm] ・Approx. 10[kg] | ||||
| Usage conditions | Temperature | 5 – 45 [℃] | Humidity | 20 – 85 [%] RH (No condensation) | |
| Electronic balance/pump | Electronic balance: A&D Company GX3002A x 2 (Option: GX-22001M) | ||||
| Pump: Watson-Marlow 120U x 2 | |||||
| Utilities | Power supply | AC100 [V], 50/60 [Hz] electrical outlet 9 gang (Main control unit, electronic balance x 4, fluid feed pump x 4) | |||

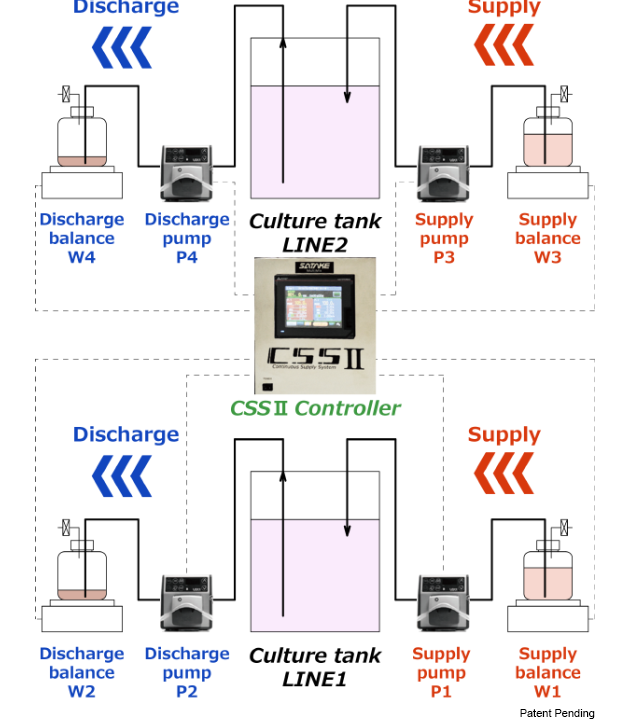

■ System flow
