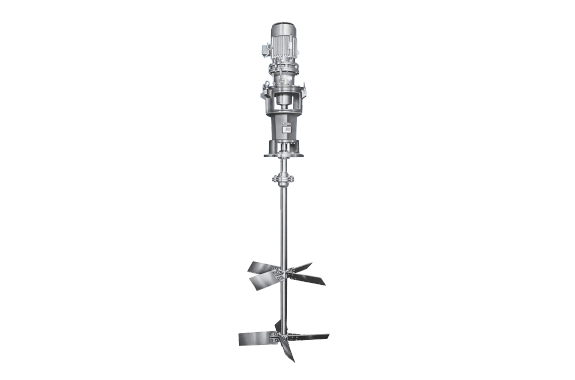

SATAKE D-Top Mixer D3-D9 Series
Manufacturer: SATAKE MultiMix Corporation
Model: D3-D9 Series
Features
- The D-top mixer is a vertically mounted type mixer that can easily be installed with motors and other components.
- It is generally constructed in 7 sizes ranging from D3 to D9.
- These are divided into two categories based on the shaft diameter, with torque divided into 14 stages.
Standard Dimensions Table
| Series No. | D3L | D3H | D4L | D4H | D5L | D5H | D6L | D6H | D7L | D7H | D8L | D8H | D9L | D9H | |
| Dimensions (mm) | O.D | 400 | 400 | 490 | 490 | 560 | 560 | 620 | 620 | 675 | 675 | 745 | 745 | 845 | 845 |
| P.D | 355 | 355 | 445 | 445 | 510 | 510 | 565 | 565 | 620 | 620 | 680 | 680 | 780 | 780 | |
| O.S | 400 | 400 | 490 | 490 | 560 | 560 | 620 | 620 | 675 | 675 | 745 | 745 | 845 | 845 | |
| P.S | 350 | 350 | 435 | 435 | 495 | 495 | 540 | 540 | 590 | 590 | 640 | 640 | 740 | 740 | |
| I.S | 223 | 223 | 285 | 285 | 332 | 332 | 355 | 355 | 380 | 380 | 420 | 420 | 460 | 460 | |
| N | 12 | 12 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 20 | 20 | 20 | 24 | 24 | |
| Z | 25 | 25 | 25 | 25 | 27 | 27 | 27 | 27 | 27 | 27 | 33 | 33 | 33 | 33 | |
| NS | 4 | 4 | 4 | 4 | 4 | 4 | – | – | – | – | – | – | – | – | |
| ZS | 24 | 24 | 28 | 28 | 35 | 35 | – | – | – | – | – | – | – | – | |
| B1 | 710 | 710 | 815 | 815 | 1,000 | 1,000 | 1,160 | 1,160 | 1,315 | 1,315 | 1,475 | 1,475 | 1,735 | 1,735 | |
| B2 | 529 | 529 | 620 | 620 | 778 | 778 | 830 | 830 | 955 | 955 | 1,050 | 1,050 | 1,150 | 1,150 | |
| L | 200 | 200 | 250 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | 500 | 500 | 550 | |
| J | 460 | 460 | 550 | 550 | 650 | 650 | 730 | 730 | 830 | 830 | 930 | 930 | 1,030 | 1,030 | |
| G1 | 28 | 28 | 35 | 35 | 37 | 37 | 40 | 40 | 45 | 45 | 50 | 50 | 55 | 55 | |
| G2 | 19 | 19 | 25 | 25 | 28 | 28 | 30 | 30 | 35 | 35 | 40 | 40 | 45 | 45 | |
| C | 175 | 175 | 215 | 240 | 265 | 305 | 310 | 340 | 345 | 380 | 380 | 430 | 430 | 450 | |
| F | 55 | 65 | 75 | 85 | 95 | 105 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | |
| H | 200 | 200 | 220 | 220 | 250 | 250 | 279 | 279 | 304 | 350 | 350 | 400 | 400 | 450 | |
| Estimated Weight (kg) | DPR | 145 | 150 | 270 | 280 | 450 | 460 | 700 | 730 | 1,000 | 1,050 | 1,500 | 1,550 | 2,200 | 2,250 |
| DOS | 120 | 125 | 220 | 230 | 375 | 385 | – | – | – | – | – | – | – | – | |
