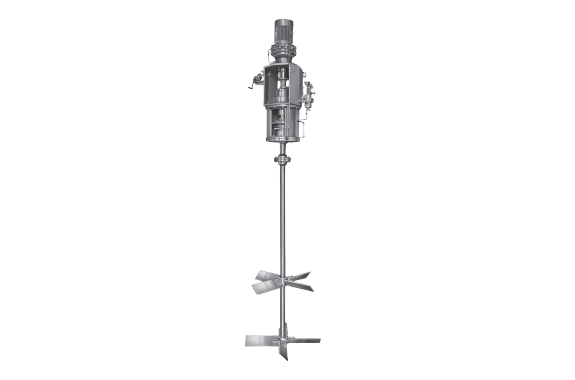

SATAKE E-Top Mixer E3-E9 Series
Manufacturer: SATAKE MultiMix Corporation
Model: E3-E9 Series
Features
- It can be used for power ratings from 0.4 kW to 75 kW.
- It is constructed with a 7-series frame, divided into two types of shafts with 14 stages of torque classification.

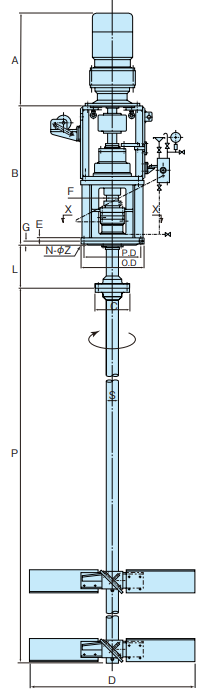

Standard Dimensions Table
| Series No. | E3L | E3H | E4L | E4H | E5L | E5H | E6L | E6H | E7L | E7H | E8L | E8H | E9L | E9H | |
| Dimensions (mm) | O.D | 445 | 445 | 490 | 490 | 560 | 560 | 620 | 620 | 675 | 675 | 745 | 745 | 845 | 845 |
| P.D | 400 | 400 | 445 | 445 | 510 | 510 | 565 | 565 | 620 | 620 | 680 | 680 | 780 | 780 | |
| N | 16 | 16 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 20 | 20 | 20 | 24 | 24 | |
| Z | 25 | 25 | 25 | 25 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 33 | 33 | |
| E | 54 | 54 | 58 | 58 | 68 | 68 | 80 | 80 | 90 | 90 | 99 | 99 | 107 | 107 | |
| G | 29 | 29 | 31 | 31 | 33 | 33 | 33 | 33 | 35 | 35 | 38 | 38 | 39 | 39 | |
| L | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | 500 | 500 | |
| F | 55 | 55 | 65 | 65 | 75 | 75 | 85 | 85 | 95 | 95 | 105 | 105 | 110 | 110 | |
| C | 175 | 175 | 215 | 240 | 265 | 305 | 305 | 330 | 330 | 345 | 365 | 390 | 430 | 430 | |
| B | 1,013 | 1,013 | 1,115 | 1,115 | 1,225 | 1,225 | 1,333 | 1,333 | 1,559 | 1,559 | 1,704 | 1,704 | 1,760 | 1,760 | |
| Estimated weight (kg) | DMR | 385 | 400 | 550 | 570 | 790 | 830 | 1,085 | 1,155 | 1,415 | 1,485 | 1,775 | 1,860 | 2,175 | 2,275 |
