SATAKE MultiMix

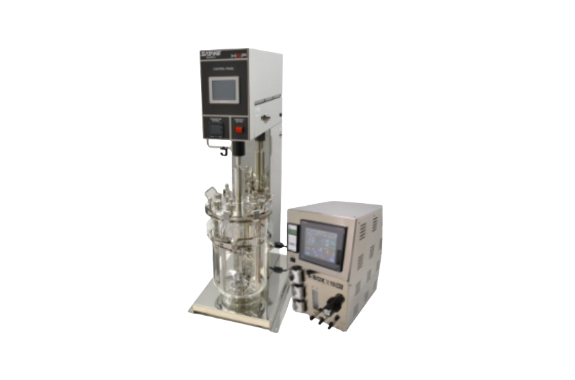

SATAKE HSF Reactor
Manufacturer: SATAKE MultiMix Corporation
Model: HSF Reactor
Features
- The HSF Reactor is a jar fermenter for low-viscosity microbe cultures, plant-based cultures, fungal cultures with non-Newtonian properties, E. coli cultures, and others requiring high OTR.
- It features the high-efficiency HS100 turbine and HR100 axial flow impeller. For large-scale tasks, it can be paired with the S-BOX controller for optimization.
- An optional cooling chiller and heat transfer coil are available for closer simulation to actual machines.
Specifications
| Item | Specifications | ||||
|---|---|---|---|---|---|
| Name | HSF Reactor | ||||
| Model | HSF-3 | HSF-10 | |||
| Temp. control device | Band heater (PID control) with over-temperature protection function (Max. 80 [℃]) + （option : In-vessel coil heat exchanger） | ||||
| Power transmission | Magnet drive (non-sealing type) | ||||
| Gas supply type | Ring sparger (option : SATAKE sparger) | ||||
| Performance*1 | Temp. control range | Room temperature + 5 – 20 [℃] (normally set to 37 [℃]) | |||
| Temp. accuracy | ±0.3 [℃]（37 [℃]） | ||||
| Rotational speed range | 5 – 1500 [min-1] | ||||
| Function | Temp. setting | Touch panel input, data output DC1 – 5 [V] | |||
| Speed setting | Touch panel input, data output DC0 – 10 [V] | ||||
| Configuration | Power of band heater | Max. 160 [W] | Max. 480 [W] | ||
| Power of motor | Max. output 100 [W] | Max. output 400 [W] | |||
| Mixing impellers | Super-Mix HS100 turbine + HR100 impeller | ||||
| Culture tank | Dimensions | I.D. 140 x Depth 203 [mm] | I.D. 200 x Depth 360 [mm] | ||
| Culture operation volume | 2.4 [L] | 6 [L] | |||
| Usage condition | 10 – 35 [℃] | ||||
| Outer dimensions | W360×D485×H905 [mm] | W360×D485×H980 [mm] | |||
| Weight | Approx. 30 [kg] | Approx. 34 [kg] | |||
| Power supply | AC100 [V], 50/60 [Hz] | ||||
| *1 The performance is the value under room temperature 20 [℃], power supply AC100 [V], 50 [Hz] and no load condition. | |||||
