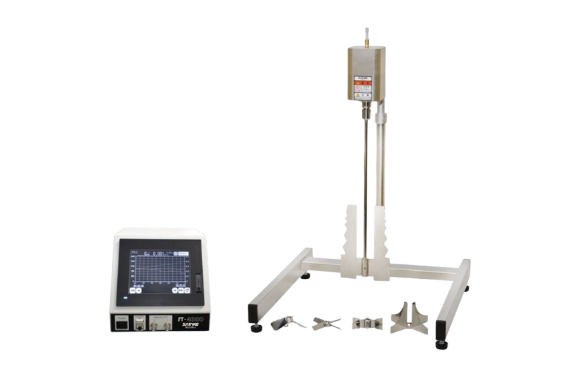

SATAKE Mixing Torque Meter ST-4000
Manufacturer: SATAKE MultiMix Corporation
Model: ST-4000
Features
- The maximum measured torque is 0.4 N·m, which can be used for low to high-speed applications.
- The liquid touch panel allows for easy operation and displays the rotation speed and torque on a digital display. It also features a graphical display.
- It is designed for use in environments that meet PSE compliance, ensuring safety and security.

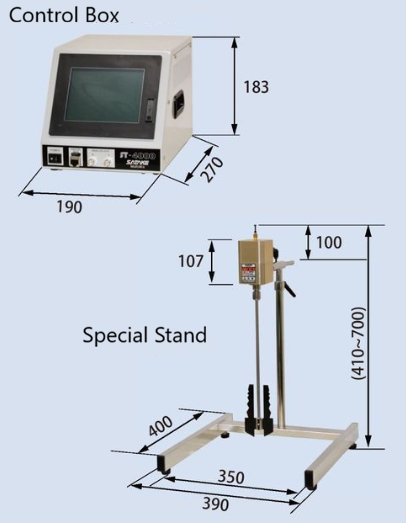

Dimension
Specification
| Drive Motor | AC Servo Motor, Output 200W |
| Shaft Diameter | φ8 mm |
| Rotation Speed | 10 ~ 1950 min⁻¹ (Forward / Reverse) |
| Torque Accuracy | ±2.0% F.S. or less |
| External Dimensions | 67 (W) × 75 (D) × 107 (L) mm |
| Weight | Approx. 1 kg |
| Explosion-Proof Construction | Not available |
| Torque Detection Range | 0 ~ 0.4 N·m |
