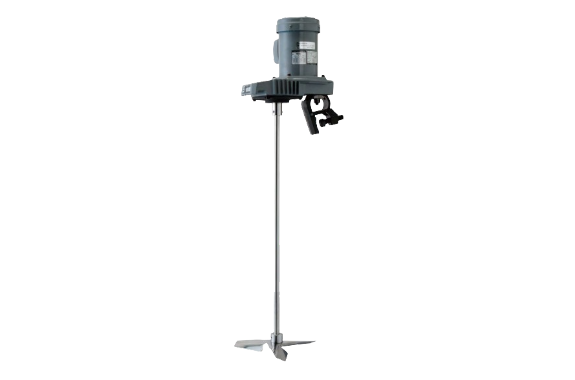

SATAKE Portable Mixer A720 / A725 Medium Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: A720 / A725
Feature
- The A720 and A725 are compact and lightweight with integrated design of clamp and body.
- It has good mixing efficiency, high durability, and can be used in a wide range of fields.
- This new type of mixer is ideal for general soluble liquid-liquid mixing, dilution, heat transfer, relatively soluble solid-liquid mixing, dispersion, prevent solids suspension, and uniform mixing.
Standard specification
| Model | Frame number | Motor | Impeller | Shaft length (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Power (kW) | Number of poles (P) | Phase and voltage (V) | Frequency (Hz) | Revolution (min-1) | Diameter (mm) | Stage | |||
| A720-0.065A | 1 | 0.065 | 4 | Single-phase 100 | 50 | 300 | 150 | 1 | 600 |
| A720-0.1A | 1 | 0.1 | 4 | Single-phase 100 | 50 | 360 | 220 | 1 | 800 |
| A720-0.1B | 1 | 0.1 | 4 | Three-phase 200 | 60 | 360 | 220 | 1 | 800 |
| A720-0.2A | 2 | 0.2 | 4 | Single-phase 100 | 50 | 300 | 270 | 1 | 1000 |
| A720-0.2B | 2 | 0.2 | 4 | Three-phase 200 | 50 | 300 | 270 | 1 | 1000 |
| A720-0.4B | 3 | 0.4 | 4 | Three-phase 200 | 50 | 360 | 310 | 1 | 1250 |
| A725-0.4B | 4 | 0.4 | 6 | Three-phase 200 | 50 | 240 | 350 | 1 | 1500 |
| A720-0.75B | 5 | 0.75 | 4 | Three-phase 200 | 60 | 360 | 350 | 1 | 1500 |
| A725-0.75B | 5 | 0.75 | 6 | Three-phase 200 | 60 | 360 | 400 | 1 | 2000 |
| A720-1.5B | 5 | 1.5 | 6 | Three-phase 200 | 60 | 360 | 400 | 1 | 2000 |

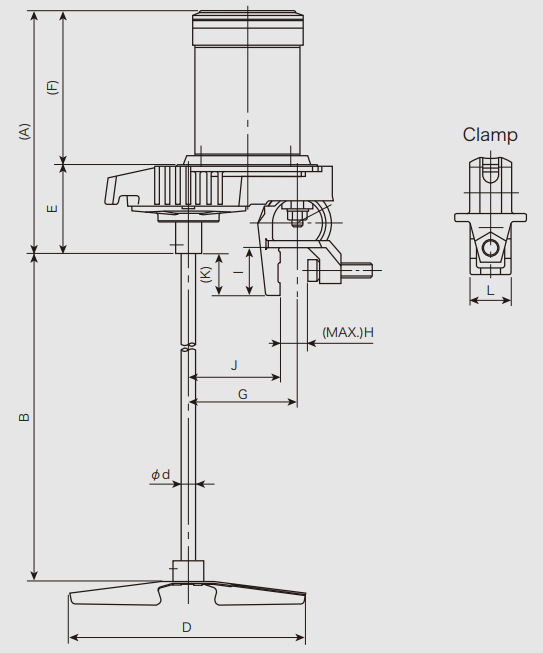

Dimensional drawing
| Model | Frame number | Motor (kW) | (A) | B | B-MAX (Option) | φd | D | E | (F) | G | H (MAX) | I | J | (K) | L | Estimated weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A720-0.065 A | 1 | 0.065 | 268 | 560 | 960 | 13 | 150 | 86 | 182 | 100 | 28 | 48 | 85 | 48 | 40 | 10 |
| A720-0.1 A | 1 | 0.1 | 268 | 760 | 960 | 13 | 220 | 86 | 182 | 100 | 28 | 48 | 85 | 48 | 40 | 11 |
| A720-0.1 B | 1 | 0.1 | 259 | 760 | 960 | 13 | 220 | 86 | 173 | 100 | 28 | 55 | 105 | 48 | 40 | 11 |
| A720-0.2 A | 2 | 0.2 | 306 | 950 | 1200 | 16 | 270 | 101 | 205 | 125 | 32 | 55 | 105 | 48 | 45 | 15 |
| A720-0.2 B | 2 | 0.2 | 276 | 950 | 1200 | 16 | 270 | 101 | 175 | 125 | 32 | 55 | 105 | 48 | 45 | 15 |
| A720-0.4 B | 3 | 0.4 | 382 | 1190 | 1440 | 20 | 310 | 152 | 230 | 160 | 48 | 90 | 120 | 28 | 52 | 19 |
| A720-0.75 B | 4 | 0.75 | 449 | 1425 | 1675 | 25 | 350 | 189 | 260 | 190 | 48 | 90 | 165 | 35 | 70 | 34 |
| A720-1.5 B | 5 | 1.5 | 517 | 1905 | 2105 | 30 | 400 | 215 | 302 | 190 | 58 | 90 | 165 | 29 | 120 | 55 |
