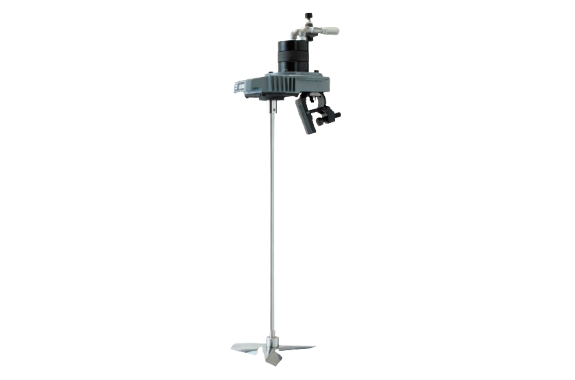

SATAKE Portable Mixer A720-K Air Motor Medium Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: A720-K
Feature
- The A720-K is driven by air-motor which hasan explosion-proof design for safety.
- It can be used for mixing liquids containing organic solvents that can ignite or explode.
- A wide range of impeller speeds from low to high speed can be obtained.
- The air motor specification does not overload the machine due to its characteristics, thus preventing damage to the machine.
Standard specification
| Model | Frame number | Model of air-motor | Air consumption (Nℓ/min) | Pressure (MPaG) | Revolution (min-1) | Diameter (mm) | Stage | Shaft length (mm) |
|---|---|---|---|---|---|---|---|---|
| A720-0.06K | 1 | VA30L | 220 | 0.4 | 200 – 360 | 150 | 1 | 600 |
| A720-0.1K | 1 | VA30L | 250 | 0.5 | 200 – 360 | 220 | 1 | 800 |
| A720-0.2K | 2 | VA30L | 400 | 0.5 | 200 – 360 | 270 | 1 | 1000 |
| A720-0.4K | 3 | VA50L | 680 | 0.5 | 200 – 360 | 310 | 1 | 1250 |
| A720-0.75K | 4 | VA100L | 1300 | 0.5 | 200 – 360 | 350 | 1 | 1500 |
Dimensional drawing
| Model | Frame number | Motor (kW) | (A) | B | B-MAX (Option) | φd | D | E | (F) | G | H (MAX) | I | J | (K) | L | Estimated weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A720-0.06K | 1 | 0.06 | 182 | 560 | 960 | 13 | 150 | 86 | 96 | 100 | 28 | 48 | 85 | 48 | 40 | 8 |
| A720-0.1K | 1 | 0.1 | 182 | 760 | 960 | 13 | 220 | 86 | 96 | 100 | 28 | 48 | 85 | 48 | 40 | 9 |
| A720-0.2K | 2 | 0.2 | 189 | 950 | 1200 | 16 | 270 | 101 | 96 | 125 | 32 | 55 | 105 | 48 | 45 | 12 |
| A720-0.4K | 3 | 0.4 | 260 | 1190 | 1440 | 20 | 310 | 152 | 108 | 140 | 48 | 80 | 140 | 35 | 52 | 17 |
| A720-0.75K | 4 | 0.75 | 322 | 1425 | 1675 | 25 | 350 | 189 | 133 | 160 | 48 | 80 | 140 | 35 | 70 | 30 |
