SATAKE MultiMix

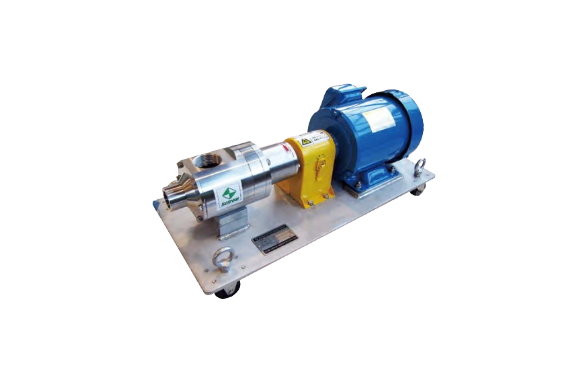

SATAKE Super Shear Mixer SDCS Series
Manufacturer: SATAKE MultiMix Corporation
Model: SDCS Series
Features
- Stronger dispersion for the left mentioned applications
- Premixing of nanoparticles production
- Redispersion of agglomerated nanoparticles
Dimensional Drawings and Dimensions for Super Shear Mixer (In-line Disperser Mixer)
| Model type | A | B | C | D | E | F | G | H | I | J | K | L | N | Z | XA | YA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDCS-060M-1.5 | 613 | 65 | 172 | – | 700 | – | 280 | 268 | 174 | -9 | 78 | 224 | – | – | Rp1B | Rp1 • 1/2B |
| SDCS-075M-3.7 | 740 | 75 | 197 | 450 | 600 | 270 | 380 | 353 | 212 | 65 | 84 | 264 | 4 | 12 | Rp1B | Rp1 • 1/2B |
| SDCS-100M-5.5 | 976 | 75 | 217 | 600 | 750 | 300 | 410 | 387 | 245 | 125 | 180 | 397 | 4 | 12 | JIS10K 40A RF | JIS10K 50A RF |
| SDCS-125M-15 | 1203 | 100 | 273 | 790 | 940 | 360 | 490 | 503 | 285 | 143 | 201 | 492 | 4 | 15 | JIS10K 50A RF | JIS10K 65A RF |
| SDCS-150M-22 | 1326 | 100 | 293 | 880 | 1030 | 370 | 500 | 553 | 355 | 166 | 233 | 528 | 4 | 15 | JIS10K 65A RF | JIS10K 80A RF |
