SATAKE VerSus Reactor

Manufacturer: SATAKE MultiMix Corporation
Model: VerSus Reactor

Features

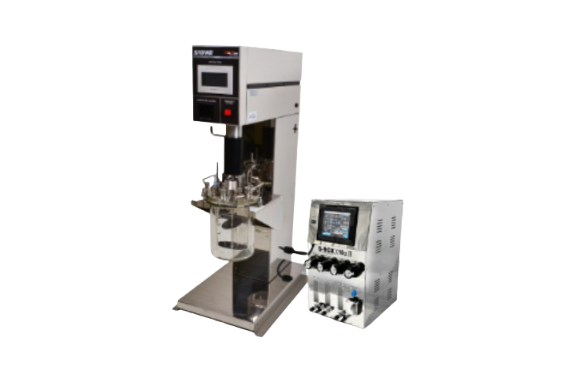

The VerSus Reactor is an innovative BioReactor for animal cell culture, combining the SPG membrane sparger technology for generating highly homogeneous micro-bubbles with the VMF Reactor.
It efficiently supplies oxygen without stressing the cells and prevents foam formation due to reduced DO airflow.
The “S-BOX × 10α II” controller allows easy adjustments, including PI control.

Item		Specifications
Name		VerSus Reactor
Model		VSR-05	VSR-1	VSR-3	VSR-10
Temp. control device		Band heater (PID control) with over-temperature protection function (Max. 80 [℃])
Power transmission		Linear shaft drive non-sealing type
Gas supply type		Shirasu porous glass (SPG) membrane type　(additional option : sintered metal type)
Performance^*1	Temp. control range	Room temperature + 5 – 20 [℃] (normally set to 37 [℃])
	Temp. accuracy	±0.3 [℃] (37 [℃])
	Max. shaft stroke	40 [mm]
	Max. shaft speed	300 [mm/s]
Function	Temp. setting	Touch panel input, data output DC1 – 5 [V]
Function	Vertical motion setting	Touch panel input, data output DC0 – 5 [V]
Configuration	Power of band heater	60 [W]	105 [W]	160 [W]	480 [W]
	Power of motor	Max. power 800 [W]
	Mixing impellers	VM200	VM100+VM200^*2
Culture tank	Dimensions	I.D. 90 x Depth 200 [mm]	I.D. 110 x Depth 169 [mm]	I.D. 140 x Depth 203 [mm]	I.D. 200 x Depth 360 [mm]
Culture tank	Culture operation volume	0.3 [L]	1.2 [L]	2.4 [L]	7 [L]
Usage condition		10 – 35 [℃]
Outer dimensions		W360×D485×H905 [mm]
Weight		Approx. 28 [kg]	Approx. 28 [kg]	Approx. 30 [kg]	Approx. 34 [kg]
Power supply		AC100 [V], 50/60 [Hz]
*1　The performance is the value under room temperature 20 [℃], power supply AC100 [V], 50 [Hz] and no load condition.
*2　Depending on the Culture operation volume, the only mixing impeller may be only the VM200.
