Seiko Time Creation Inc.

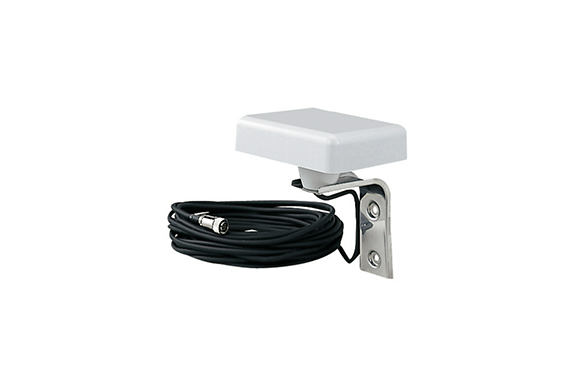

Seiko Time Creation GNS-300 Receiver
Manufacturer: Seiko Time Creation Inc.
Model: GNS-300
Overview
GNSS Receiver (GNS-300), it automatically receives the GNSS radio wave on a regular basis to keep the correct time.
Specification
| Feature | Specification |
|---|---|
| Power Supply | DC 3.6 ~ 5.0V, 45mA (supplied by QT-78XXX, QC-55XXX, or QCG-200) |
| Satellites Supported | GPS, QZSS, GLONASS, Galileo |
| Operational Temperature Range | -20℃ ~ +60℃, Water resistance: equivalent to IPX3 (except connector) |
| Structure (Overall Dimensions) | W142 x H65 x D110 (mm) |
| Cable Length | Approx. 10m (shielded 6-core cable) |
| Extension Cable | 200m or less – 1.25 sq, 300m or less – 2.0 sq |
| Weight | Approx. 850g |
