Seiko Time Creation WG-300 Ultrasonic Wind Gauge
Manufacturer: Seiko Time Creation Inc.
Model: WG-300
Overview
Selectable measurement duration
Measurement duration can be selected from 5, 10 and 13 seconds according to the type of events.
Real-time display of measurements
The result of measurement can be displayed instantly on the wind velocity display board (option).
Powered by battery
Relocation of the display board can be made easily.

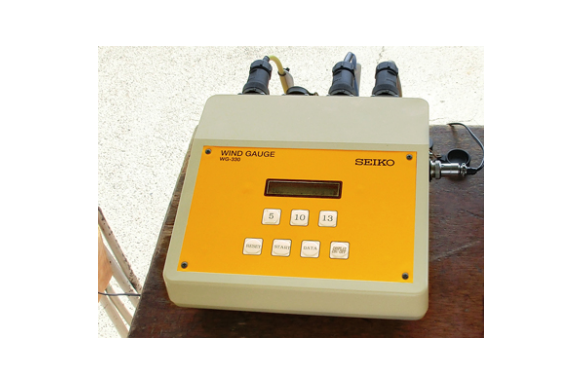

- Ultrasonic wind gauge operation board

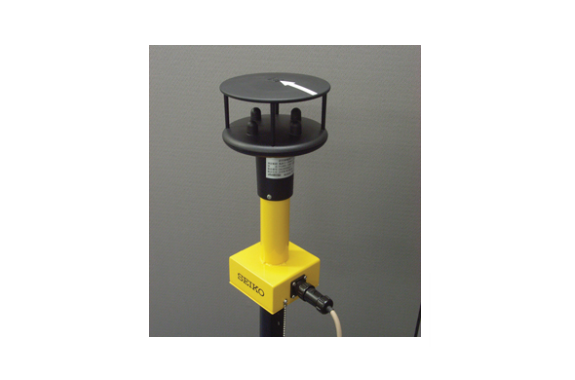

Sensor
Specification
| Category | Details |
|---|---|
| Measuring Range | −19.99 to +19.99 m/s |
| Accuracy | Within ±10% (at wind velocity of 2 m/s) |
| Measurement Unit | 0.01 m/s |
| Measurement Duration | Selectable: 5 / 10 / 13 sec |
| Measurement Direction | Head and tail winds |
| External Output | RS-422 |
| Power Supply | DC 12 V; LR06 “AA” alkaline × 8 pcs |
| Operating Temperature | −10°C to +50°C |
| Weight | Sensor: ~1.6 kg; Stand: ~6.0 kg; Operation board: ~1.2 kg |

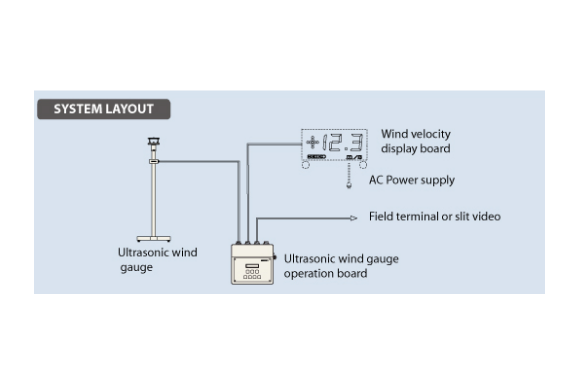

System Configurations
| Item | Quantity |
|---|---|
| Sensor | 1 unit |
| Stand | 1 unit |
| Ultrasonic wind gauge operation board | 1 unit |
| Connection cable | 1 piece |
| Carrying case | 1 set |
