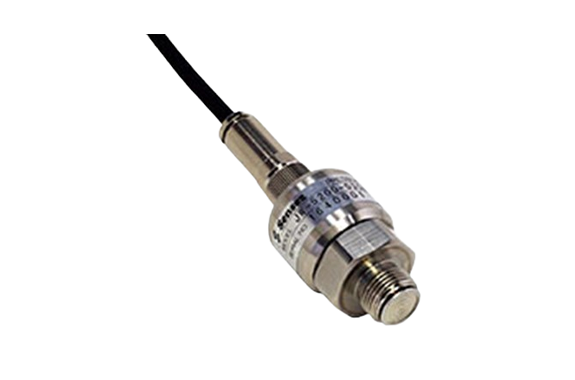

SENSEZ JW-5000 Waterproof Connector-type Pressure Sensors for Medium and High Pressure
Products Made in Japan
Manufacturer :SENSEZ
Model :JW-5000 (JW-5300-002MP,JW-5300-003MP,JW-5300-005MP,JW-5300-010MP,JW-5300-020MP,JW-5300-035MP,JW-5200-002MP,JW-5200-003MP,JW-5200-005MP,JW-5200-010MP,JW-5200-020MP,JW-5200-035MP)
Medium and high pressure sensor with a stainless steel diaphragm structure
Features
- Waterproof connector type
- For medium and high pressure
- Medium and high pressure sensor with a stainless steel diaphragm structure Outdoor specification / Waterproof IP67 structure
- Flat-type diaphragm ideal for measuring the pressure of viscous fluid
- Easy-to-handle waterproof connector type
- Semiconductor type with high precision and excellent durability
- Output signal of 1 to 5 VDC or 4 to 20 mADC from a built-in amplifier circuit
Characteristics
- Medium and high pressure sensor with a stainless steel diaphragm structure
- Flat-type diaphragm ideal for measuring the pressure of viscous fluid
- Easy-to-handle waterproof connector type
- Semiconductor type with high precision and excellent durability
Specifications
- Accuracy：± 0.5％ F.S. or less
- Output signal of 1 to 5 VDC or 4 to 20 mADC from a built-in amplifier circuit
- Overpressure：＜JW-5300＞200% of the rated pressure
＜JW-5200＞150% of the rated pressure
Use examples and track record
- Discharge pressure measurement for compressors
- Discharge pressure measurement for pumps
- Gas pressure measurement for refrigerators
- Filter clogging detection
- Pressure control for resin injectors and dispensers
- Pressure measurement for hydraulic equipment
Industries where our products are widely used
Precision equipment, semiconductors/liquid crystal, machinery, food/drug production, industrial material, etc.
| Model | Rated pressure |
| JW-5300-002MP | 0～2MPa |
| JW-5300-003MP | 0～3MPa |
| JW-5300-005MP | 0～5MPa |
| JW-5300-010MP | 0～10MPa |
| JW-5300-020MP | 0～20MPa |
| JW-5300-035MP | 0～35MPa |
| JW-5200-002MP | 0～2MPa |
| JW-5200-003MP | 0～3MPa |
| JW-5200-005MP | 0～5MPa |
| JW-5200-010MP | 0～10MPa |
| JW-5200-020MP | 0～20MPa |
| JW-5200-035MP | 0～35MPa |
| Model | JW-5300 /JW-5200 | |||||
| -002 MP | -003 MP | -005 MP | -010 MP | -020 MP | -035 MP | |
| Rated pressure * 1 | 0〜2MPa | 0〜3MPa | 0〜5MPa | 0〜10MPa | 0〜20MPa | 0〜35MPa |
| Pressure type | Shield gauge pressure | |||||
| Overpressure | JW-5300 : 200% of the rated pressure / JW-5200: 150% of the rated pressure | 140% | ||||
| Wetted part material | Diaphragm: SUS316L Pressure port: SUS316 O-ring: Fluororubber (standard) | |||||
| Sealing liquid | Silicone oil | |||||
| Applicable media | Gas and fluid (media not damaging the wetted part material) | |||||
| Power supply | 12 to 28VDC | |||||
| Output | JW-5300: 1 to 5VDC / JW-5200 : 4 to 20mADC | |||||
| Current consumption | 6mA or less | |||||
| Load resistance | JW-5300: 1k 2 or more / JW-5200 : 600 Ω or less (at power of 24 VDC) | |||||
| Responsiveness | 5msec or less | |||||
| Accuracy (linearity) | ±0.5% F.S. or less * 1 (±0.3% F.S. or less) | |||||
| Temperature characteristics | ±0.05% F.S. / °C or less (0 to 60°C) | |||||
| Compensated temperature range | O to 60°C | |||||
| Operating temperature range | -20 to 80°C (no freezing allowed) | |||||
| Operating humidity range | 35 to 85% RH (no dew condensation allowed) | |||||
| Pressure connection port | G3/8*2 | |||||
| Cable | 6 vinyl (with connector) : 2000mm (standard) Shield cable | |||||
| Structure | IP67 | |||||
| Insulation resistance | 100M 2 or more / 500VDC | |||||
| Withstand voltage | 500VAC, 1 minute | |||||
| Vibration resistance | 98.1 m/s², 2 hours (X, Y, and Z directions) | |||||
| Weight | Approx 1210g | |||||
- We also manufacture high-accuracy pressure sensors (accuracy: ± 0.25% F.S. or less).
- Conversion joints (models: G3R3 and G3R2) and damper joints (model: G3R3-DSM5) are available.
Dimensions(Units:mm)
Cables / wires
| Red | Power supply + | Power supply + |
| White | Output | Power supply – |
| Black | Common | _ |
