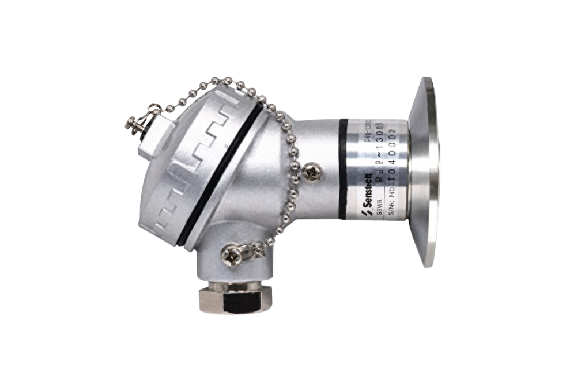

SENSEZ MJI Terminal Box-type Pressure Sensors
Products Made in Japan
Manufacturer :SENSEZ
Model :MJI (MJIN-100KP,MJI-020KP,MJI-050KP,MJI-100KP,MJI-300KP,.MJI-500KP,MJI-001MP)
Gage pressure sensor of waterproof structure terminal box type conforming to IP 67
Features
- Terminal box type
- Sanitary type
- Terminal box type of the “HJ series” sanitary pressure sensor
- IDF clamp 2S mounting structure (ferrule type)
- High precision and excellent durability for a wide range of pressures Output signal of
- 4 to 20 mADC from a built-in amplifier circuit
Characteristics
- IDF clamp 2S mounting structure (ferrule type)
- High precision and excellent durability for a wide range of pressures
Specifications
- Accuracy：± 0.5％ F.S. or less
- Output signal of 4 to 20 mADC from a built-in amplifier circuit
- Overpressure：＜MJI＞150% of the rated pressure
Use examples and track record
- Level measurement for open tanks
- Level measurement for food tanks
- Level measurement for medicine tanks
Industries where our products are widely used
Precision equipment, semiconductors/liquid crystal, machinery, food/drug production, industrial material, etc.
| Model | Rated pressure |
| MJIN-100KP | 0～−100kPa |
| MJI-020KP | 0～20kPa |
| MJI-050KP | 0～50kPa |
| MJI-100KP | 0～100kPa |
| MJI-300KP | 0～300kPa |
| MJI-500KP | 0～500kPa |
| MJI-001MP | 0～1MPa |
| Model | MJI | ||||||
| N-100KP | -020KP | -050KP | -100KP | -300KP | -500KP | -001 MP | |
| Rated pressure * 1 | 0～-100kPa | 0～20kPa | 0～50kPa | 0～100kPa | 0～300kPa | 0～500kPa | 0〜1MPa |
| Pressure type | Gauge pressure ※2 ※3 | ||||||
| Overpressure | 150% of the rated pressure | ||||||
| Wetted part material | Diaphragm : SUS316L Pressure port: SUS316 | ||||||
| Sealing liquid | Silicone oil | ||||||
| Applicable media | Gas and fluid (media not damaging the wetted part material) | ||||||
| Power supply | 12 to 28VDC | ||||||
| Output | 4 to 20mADC | ||||||
| Load resistance | 600Ω or less (at power of 24 VDC) | ||||||
| Responsiveness | 5msec or less | ||||||
| Accuracy (linearity) | ±0.5% F.S. or less ※4(±0.3% F.S. or less) | ||||||
| Temperature characteristics | ± 0.05% F.S. / °C or less (0 to 60°C) | ||||||
| Compensated temperature range | O to 60°C | ||||||
| Operating temperature range | – 10 to 80°C (no freezing allowed) | ||||||
| Operating humidity range | 35 to 85% RH (no dew condensation allowed) | ||||||
| Pressure connection port | IDF clamp 2S mounting structure (ferrule type) | ||||||
| Terminal box | Material: Aluminum die casting | ||||||
| Wire outlet | G1/2 Applicable outer cable diameter: $ 6.5 to 8.0 | ||||||
| Structure | IP67 | ||||||
| Insulation resistance | 100M Ω or more / 500VDC | ||||||
| Withstand voltage | 500VAC, 1 minute | ||||||
| Vibration resistance | 98.1 m/s², 2 hours (X, Y, and Z directions) | ||||||
| Weight | Approx 380g | ||||||
| Impact of mounting orientation (port orientation changed from downward to sideways) | + 0.1% F.S. | + 0.5% F.S. | + 0.3% F.S | + 0.1% F.S. | _ | ||
- We also manufacture compound pressure sensors (gauge pressure of 500 kPa or less).
- Make sure that the operating vacuum pressure is 10 kPa abs or more. (Operating temperature range: 0-60℃)
- Use a wiring cable for atmospheric pressure correction.
- We also manufacture high-accuracy pressure sensors (accuracy: ± 0.25% F.S. or less).
Dimensions(Units:mm)
Internal terminal block / wires
Model
