Manufacturer: SHIMADEN CO., LTD.
Model: CP3200

Features

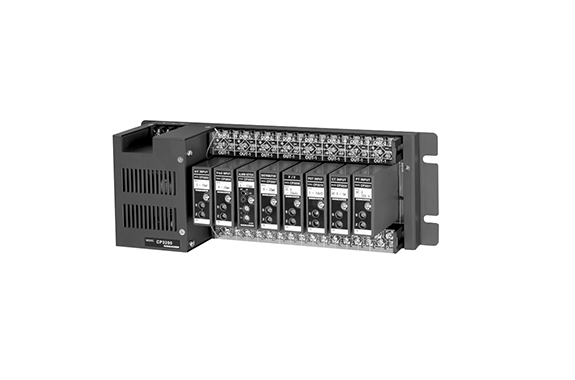

The CP3200 is a dedicated base consisting of the power supply section, input, output terminals, and other components for the CP3000 series converters. When using this unit, it must always be used in conjunction with the CP3000 series converter.

Specification

Power Supply:
100–240V AC ±10%, 50/60Hz
24V DC ±10%
Power Consumption:
For 8 units: Maximum 40VA (AC power)
Used for 16 units: Maximum 65VA (AC power)
For 24V DC: Total consumption current of the used converters
Converter Power Supply:
24V DC ±10%
Maximum Output Current: 1.3A
Operating Conditions:
Temperature: 0–55°C
Humidity: ≤ 90% RH (without condensation)
External Dimensions: H48×W17.5×D65 mm
Weight:
For 8 units:
AC power: Approx. 1000g
DC power: Approx. 700g
For 16 units:
AC power: Approx. 1500g
DC power: Approx. 1200g
