Manufacturer: SHIMADEN CO., LTD.

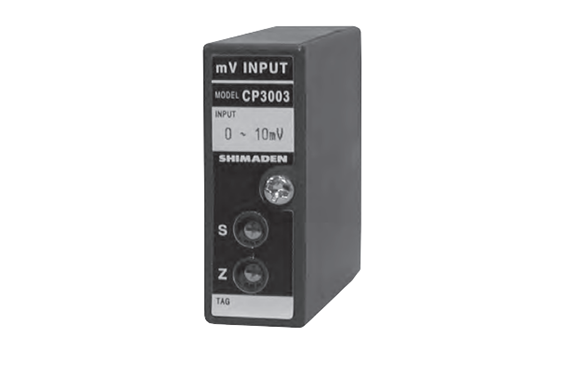

Model: CP3003

Features

It converts the DC mV signal into various DC signals and outputs them. It is an insulated output mV signal converter.

Specification

Input Types:
0 to 10mV DC
0 to 100mV DC
Output Types

First Output:
0 to 5V DC
0 to 10V DC
1 to 5V DC
1 to 5V DC
Second Output:
0 to 5V DC
0 to 10V DC
1 to 5V DC
4 to 20mA DC
Input Resistance: 1MΩ or more
Conversion Accuracy: ±0.1% of the maximum input signal (FS)
Response Speed: 50ms or less
Conversion Output:
DC Voltage: Load current 2mA or less
DC Current: Load resistance 300Ω or less
General Specifications
Power Supply: 24V DC ±10%
Current Consumption: 50mA or less
Operating Environment Conditions:
Temperature: 0 to 55°C
Humidity: 30 to 90% RH or less (no condensation)
Dimensions: H48 × W17.5 × D65 mm
Weight: Approximately 70g
