Manufacturer: SHIMADEN CO., LTD.

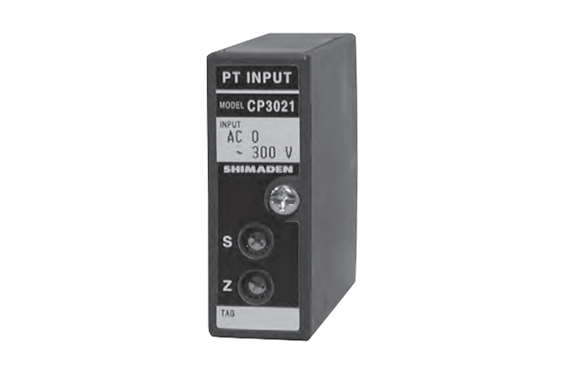

Model: CP3021

Features

The AC voltage signal from the PT (transformer) is converted into various DC signals and output. It is an isolation output PT converter.

Specification

Input Types:
0–110V AC, 50/60Hz
0–150V AC, 50/60Hz

0–250V AC, 50/60Hz
Output Types:

Output 1:
0–5V DC
0–10V DC
1–5V DC
1–5V DC
Output 2:
0–5V DC
0–10V DC
1–5V DC
4–20mA DC
Input Loss: 0.5VA or less
Input Frequency: 50/60Hz
Conversion Accuracy: ±0.25% FS of the maximum input signal
Conversion Output:
DC Voltage: Load current ≤ 2mA
DC Current: Load resistance ≤ 300Ω
Response Time: ≤ 100ms
General Specifications
Power Supply: 24V DC ±10%
Current Consumption: ≤ 50mA
Operating Conditions:
Temperature: 0–55°C
Humidity: 30–90% RH (without condensation)
External Dimensions: H48×W17.5×D65 mm
Weight: Approx. 70g
