Manufacturer: SHIMADEN CO., LTD.

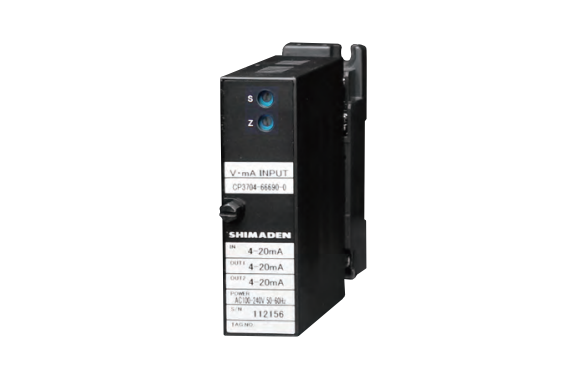

Model: CP3704

Features

The DC voltage or DC current signal is converted into various DC signals and output. It is an isolation output V/mA signal converter.

Specification

Input Types:
0–5V DC
0–1V DC
0–10V DC
1–5V DC
4–20mA DC
-5–5V DC
-10–10V DC
Output Types:
0–10mV DC
0–100mV DC
-10–10mV DC
-100–100mV DC
1–5V DC
4–20mA DC
0–5V DC
0–10V DC
Input Resistance:
Voltage input: ≥1MΩ
Current input: 250Ω
Conversion Accuracy: ±0.1% FS
Response Time: ≤85ms
Output Load:
1V span or higher: Load current ≤ 2mA
10mV span or higher: Load resistance ≥ 10kΩ
100mV span or higher: Load resistance ≥ 100kΩ
First output only (current): Load resistance ≤ 750Ω
Both first and second outputs (current):
First output: Load resistance ≤ 550Ω
Second output: Load resistance ≤ 350Ω

General Specifications:Power Supply:
100–240V ±10% AC, 50/60H
24V DC ±10%
Power Consumption:
100–240V AC: ≤ 5VA
24V DC: ≤ 2W
Operating Conditions:
Temperature: -5 to 55°C
Humidity: ≤ 90% RH (without condensation)
External Dimensions:
H86×W29×D125 mm
Weight:
Approx. 120g (main unit)
Approx. 80g (socket terminal block)
