Manufacturer: SHIMADEN CO., LTD.

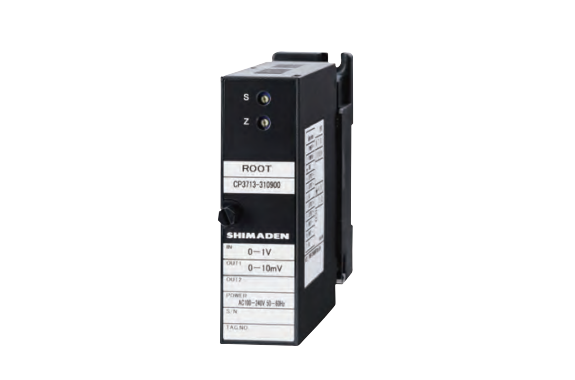

Model: CP3713

Features

The DC current/voltage signal is square root calculated and converted into various DC signals for output. It is a square root calculator.

Specification

Input Types:
0–1V DC
0–10V DC
0–5V DC
1–5V DC
4–20mA DC
Output Types:
0–10mV DC
0–1V DC
0–10V DC
0–5V DC
1–5V DC
4–20mA DC
Conversion Accuracy: ±0.2% (within input range of 1–100%, at 25°C ±5°C)
Input Resistance: ≥1MΩ
Response Time: ≤120ms
Output Load:
1V span or higher: Load current ≤ 2mA

10mV span or higher: Load resistance ≥ 10kΩ
100mV span or higher: Load resistance ≥ 100kΩ
First output only (current): Load resistance ≤ 750Ω
Both first and second outputs (current):
First output: Load resistance ≤ 550
Second output: Load resistance ≤ 350Ω
General Specifications:
Power Supply:
100–240V ±10% AC, 50/60Hz
24V DC ±10%
Power Consumption:
100–240V AC: ≤ 6VA
24V DC: ≤ 2W
Operating Conditions:
Temperature: -5 to 55°C
Humidity: ≤ 90% RH (without condensation)
External Dimensions: H86×W29×D125 mm
Weight:
Approx. 120g (main unit)
Approx. 80g (socket terminal block)
