Manufacturer: SHIMADEN CO., LTD.

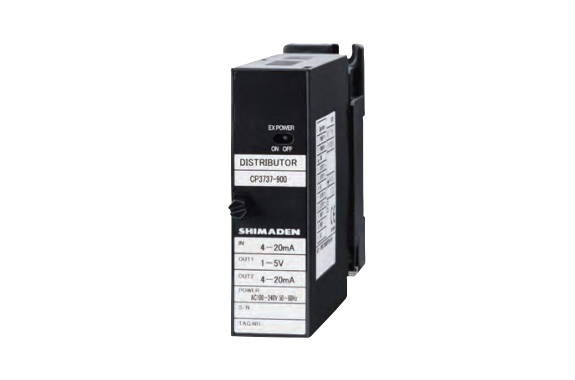

Model:  CP3737

Features

This is a 2-channel non-isolated distributor that supplies power to various 2-wire transmitters and converts input signals into various DC signals.

Specifications

Input type :4 to 20mA DC
Output type: Primary output: 1 to 5V DC
Secondary output: 4 to 20mA DC

Conversion accuracy: Within ±0.1% (depending on the accuracy of the receiving resistor)
Input resistance: 1MΩ or more
Response time: Input frequency: 50Hz: 65ms or less, 500Hz or more: 35ms or less
Output load : Open collector: Maximum rating 30V, 100mA (resistive load)PhotoMos relay: Maximum load voltage 400V (peak AC).
Maximum continuous load current 0.15A (peak AC)
General specifications
Power supply: 100 to 240V ±10% AC 50/60Hz
24V DC ±10%
Power consumption: 100 to 240V AC 5VA or less,
24V DC 1.5W or less
Operating environment: -5 to 55°C
 5 to 90% RH or less (no condensation)
External dimensions: H86 x W29 x D125 mm
Weight: Approx. 120 g (main unit) Approx. 80 g (socket terminal block)
