Shimaden FP93 Series Digital Dontroller
Manufacturer: SHIMADEN CO., LTD.
Model: FP93 Series
Features

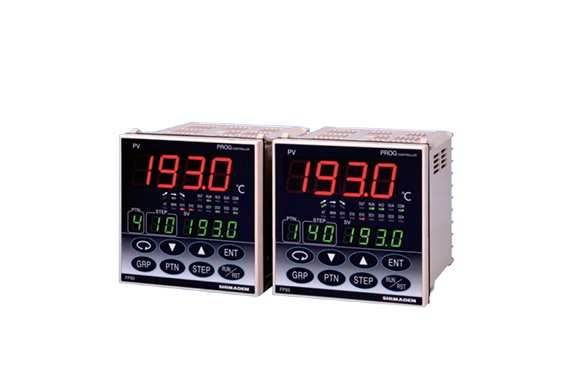

This program controller features a large, bright LED display and supports up to 4 program patterns with 64 steps. It handles multiple inputs, including thermocouples, resistance thermometers, and voltage. Event output: 3 points, external control input: 4 points, and dustproof construction compliant with IP66 are standard.
Specifications
| Category | Details |
|---|---|
| Input Types | |
| Thermocouple | 12 types |
| Resistance Thermometer | 2 types |
| Voltage (mV) | 6 types |
| Voltage Input (V) | 6 types |
| Current Input | 2 types |
| Display Accuracy | ±0.3% FS + 1 digit |
| Reference Junction Compensation Accuracy | |
| Ambient Temperature (18-28°C) | ±1°C |
| Display Update Cycle | 0.25 seconds |
| Adjustment | Auto-tuning function Expert PID |
| Output Types | |
| Contact | 1c 240V AC 2.5A (resistive load) |
| Current | 4-20mA DC Load resistance: 600Ω or less |
| SSR Drive Voltage | 12V ±1.5V DC 30mA or less |
| Voltage | 0 to 10V DC Load current: 2mA or less |
| Options | |
| External Control Output | 4 points, open collector, maximum 24V DC 20mA |
| Analog Output | 1 point: 0-10mV, 4-20mA, 0-10V |
| Communication Function | RS-485, RS-232 |
| General Specifications | |
| Power Supply | 100-240V ±10% AC 50/60Hz |
| Power Consumption | 100-240V AC 16VA or less |
| Operating Environment | -10 to 50°C, 90% RH or less (no condensation) |
| External Dimensions | H96 x W96 x D111mm (inside panel depth 100mm) |
| Weight | Approx. 450g |
