Manufacturer: SHIMADEN CO., LTD.

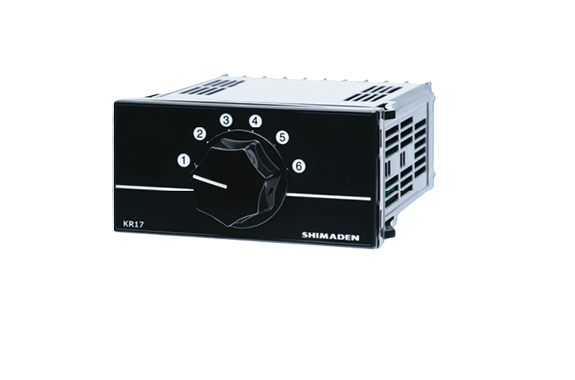

Model: KR17 Series

Features

Thermocouple and voltage switching is possible for up to six points.

Specifications

Number of switching points: 6 points
Switching operation: Rotary type
Applicable signals: Thermocouple, DC voltage contact
Rated contact method: Slide type
Voltage: 30V DC
Current: 100mA DC
Contact resistance: 300mΩ
Power supply: Not required
Operating environment conditions:
Temperature: -10 to 50°C
Humidity: 90% RH or less (no condensation)
External dimensions: H48 x W96 x D127mm (inside panel depth 100mm)
Weight: Approximately 250g
