Manufacturer: SHIMADEN CO., LTD.
Model:  MCM57/MRM57 Series

Features

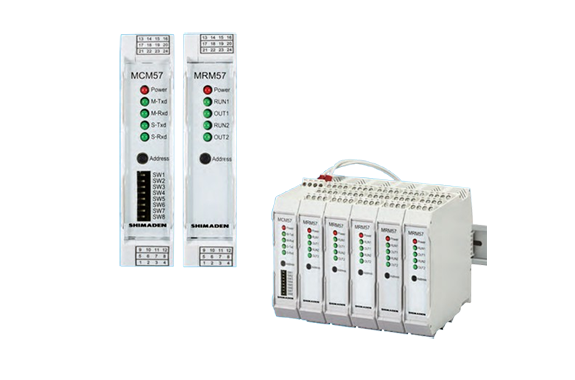

A multi-loop temperature controller with a modular structure and 2 input channels and 2 output channels. Its slim design allows for close-coupled installation with a width of 22.6 mm, and DIN rail mounting saves space, allowing installation in narrow spaces. The use of European terminals reduces wiring work, and the detachable structure makes installation and replacement easy.

Specifications

Input Types:

Thermocouple: 14 types
Resistance Thermometer: 2 type
Voltage Input (mV): 6 types
Voltage Input (V): 6 types
Current Input: Achieved by attaching a separately sold shunt resistor to the voltage input.
Accuracy:
Input Accuracy: ±0.25% FS + 1 digit
Reference Junction Compensation Accuracy: Ambient Temperature: 5°C to 45°C → ±3°C
Sampling:
Sampling Period: 0.5 seconds
Control:
Control Method: Expert PID with Auto-Tuning
Output Types:
Transistor Open Collector: 24V DC, 100mA
Current (4 to 20mA DC): Load Resistance ≤ 500Ω
SSR Drive Voltage: 12V ±1.5V DC, 30mA or less
Voltage (0 to 10V DC): Load Current ≤ 2mA
Optional Features:
Programming: Up to 4 patterns, 32 total steps
Analog Output: 1 point (0 to 10mV, 4 to 20mA, 0 to 10V)
DI Input: 3 points

General Specifications

Power Supply :　24V DC ±10%
Power Consumption :
Communication Module: Max. 1.9W
Temperature Control Module: Max. 2.9W
Operating Environment:　-10 to 55°C　90% RH or less (no condensation)
External dimensions:　H108 x W22.6 x D113.6 mm
Weight:
Communication module: approx. 120 g
Temperature control module: approx. 150 g
