Manufacturer: SHIMADEN CO., LTD.
Model: RD-10M Series

Features

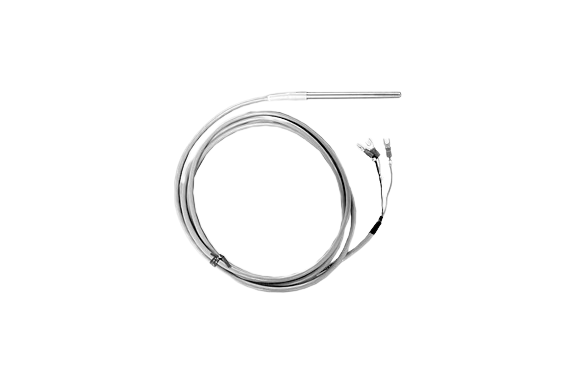

It is drip-proof and relatively resistant to moisture. This is a resistance thermometer sensor with direct lead wire attachment. The applicable temperature range is -50 to 100°C (theoretical value, not guaranteed). The length of the protective tube can be customized to order.

Specification

Resistance thermometer type: Pt100
Number of elements: 1
Protective tube outer diameter: φ7.0
Encasing tube length: 100, 250 mm
Other protective tube material: SUS316
Class: B JIS C 1604-1997
Lead wire: Silicon lead 2 m
Other fixing brackets (optional): Loose flange, compression fitting
