Manufacturer: SHIMADEN CO., LTD.
Model: RD-12M Series

Features

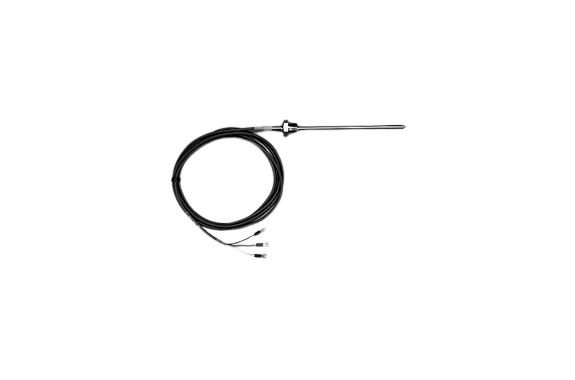

It is drip-proof and features a relatively water-resistant structure. This is a resistance thermometer sensor with direct lead wire attachment. The applicable temperature range is -50 to 100°C (theoretical value, not guaranteed). A fixed nipple “R(PT)1/2” is included as standard. The length of the protective tube can be customized to order.

Specification

Resistance thermometer type: Pt100
Number of elements: 1
Protective tube outer diameter: φ4.8, 6.4, 8.0
Encasing tube length: 150, 200, 250, 300 mm. Other
Protective tube material: SUS316
Class: B JIS C 1604-1997
Lead wire: Silicone lead 3 m, 6 m, Other
Fixing bracket: R(RT)1/2 fixed nipple
