Manufacturer: SHIMADEN CO., LTD.
Model: TD-18S Series

Features

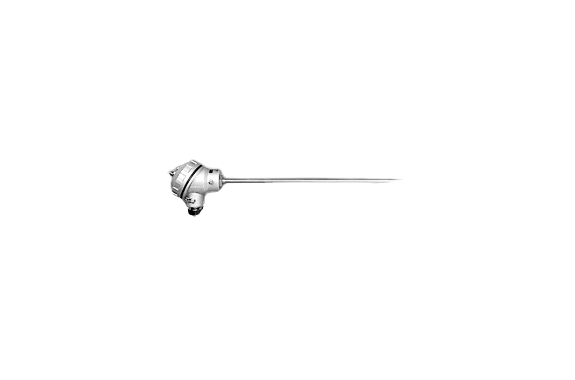

This is a terminal box type thermocouple with a detachable compensation lead wire. Normal use limit: 650 to 800°C (theoretical value, not guaranteed value). The insulating material fills the protective tube, providing excellent response to temperature changes.You can bend the protective tube for use (at least five times its diameter). Additionally, protective tube sizes can be customized to order.

Specification

Thermocouple type: K, J
Number of wires: 1
Temperature measurement junction: Ungrounded
Sheath outer diameter: φ3.2, 4.8, 6.4, others
Coating length: 250, 350, 500 mm, others
Sheath material: SUS316(L)
Class: 2 (0.75 class) JIS C 1605-1995
Compensating lead wire (optional): Glass wool 3 m, 6 m, others
Fixing bracket (optional): Loose flange, compression fitting
