Manufacturer: SHIMADEN CO., LTD.

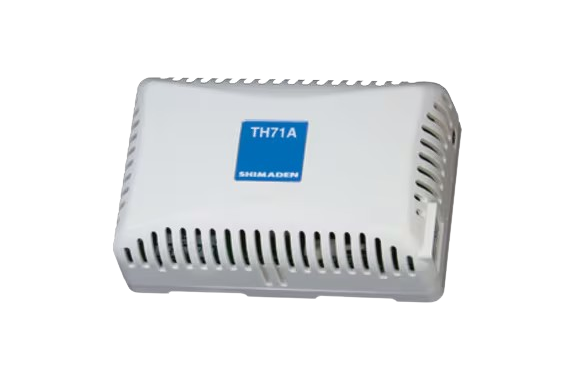

Model: TH71A Series
Features
The TH71A series is a wall-mounted temperature and humidity detector for general air conditioning use. It is compact, lightweight, and easy to install. The detection range is 0–50°C and 20–90% RH. The detection accuracy is ±0.3°C and ±3% RH (at 25°C, 20–90% RH).
Specification
Temperature specification: Pt100 (measuring current 1mA, 3-wire output), voltage output
Number of temperature elements: 1 element
Temperature range: 0–50°C
Humidity detection element: Polymer sensor
Number of humidity elements: 1 element
Humidity output types: Voltage, current
Power supply voltage: 24VDC
Weight: Approximately 150g
