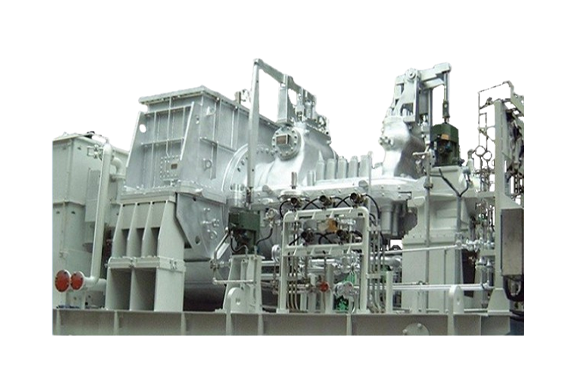

Manufacturer: Shin Nippon Machinery Co., Ltd

Features

• Thermal energy recovery system – Utilizes the pressure difference between intake and exhaust steam to convert part of the thermal energy into mechanical power, which can then be reused for factory processes.
• Stable pressure control – Steam extracted from intermediate turbine stages is controlled precisely using internal extraction pressure regulation, maintaining constant supply pressure to the factory.
• Built-in pressure control valve – A pressure control valve inside the turbine casing regulates upstream pressure, ensuring steady extraction pressure during operation.
• Dual extraction capability – Up to two internal control valves can be installed, allowing two independent steam supply lines (e.g., medium-pressure and low-pressure steam) from a single turbine.
• Flexible operation – Enables efficient steam utilization across multiple process loads while maintaining turbine efficiency.
• Simplified system design – Reduces the need for external control systems by integrating extraction control within the turbine body.
• Improved energy efficiency – Reuses exhaust energy, thereby reducing overall energy waste and enhancing plant efficiency.
• System variations:

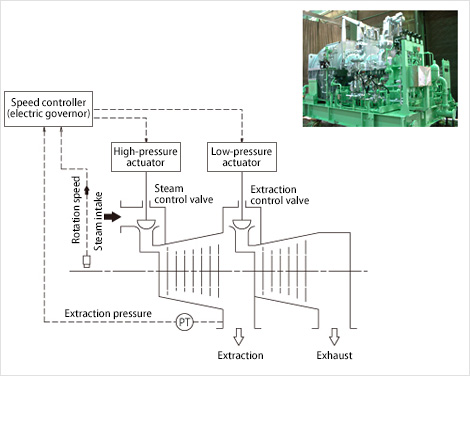

• Single-stage internal extraction turbine – Provides one controlled extraction line.

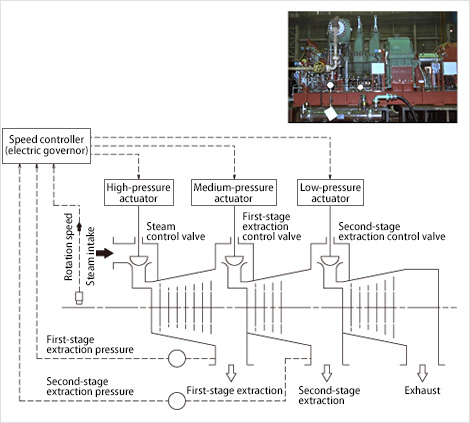

• Two-stage internal extraction turbine – Provides two controlled extraction lines (medium and low pressure).

• Single-stage internal extraction turbine

•

• • Two-stage internal extraction turbine
