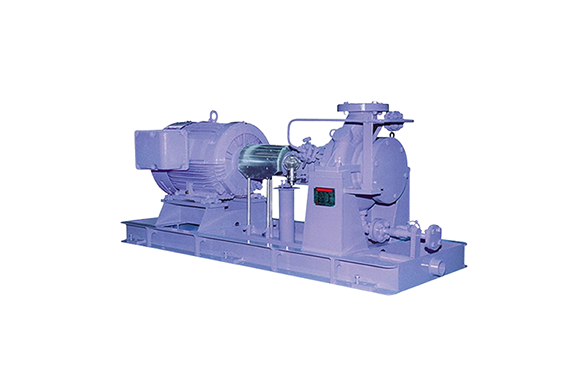

Shin Nippon Machinery NSI/NSIV Overhang Pump
Manufacturer: Shin Nippon Machinery Co.,Ltd
Model: NSI/NSIV
Features
- Centerline support
The centerline support structure is designed to eliminate the effects of thermal expansion under high-temperature operating conditions. - Seal chamber
Seal chamber dimensions fully conform to API682 and API610 standards, with installation of dual seals also supported.
- Air cooling system
Forced air-cooling by fan is standard for high-temperature applications.
Operation up to maximum temperature of 250°C is possible without using cooling water on bearings. At temperatures over 250°C, a water jacket-cooling bearing housing is used.
Specifications
- Maximum flow rate:1500m³/h
- Maximum diff. head:400m
- Maximum operating temperature:400℃
- Pressure rating:4MPa
