Shin Nippon Machinery Co.

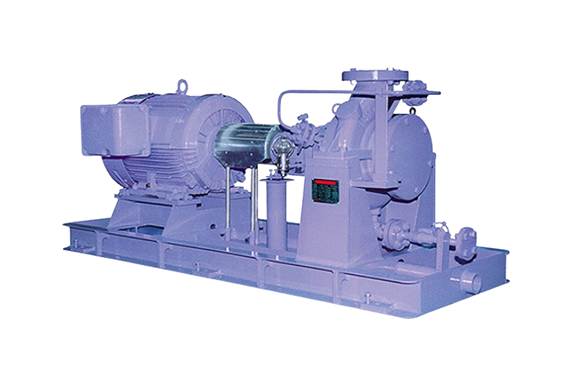

Shin Nippon Overhang Pump
Manufacturer: Shin Nippon Machinery Co., Ltd
Features
Centerline support
- The centerline support structure is designed to eliminate the effects of thermal expansion under high-temperature operating conditions.
Seal chamber
- Seal chamber dimensions fully conform to API682 and API610 standards, with installation of dual seals also supported.
Air cooling system
- Forced air-cooling by fan is standard for high-temperature applications.
- Operation up to maximum temperature of 250°C is possible without using cooling water on bearings.
- At temperatures over 250°C, a water jacket-cooling bearing housing is used.
Specifications
| Specification | Value |
|---|---|
| Maximum flow rate | 1500 m³/h |
| Maximum differential head | 400 m |
| Maximum operating temperature | 400°C |
| Pressure rating | 4 MPa |
