Shin Nippon Machinery Co.

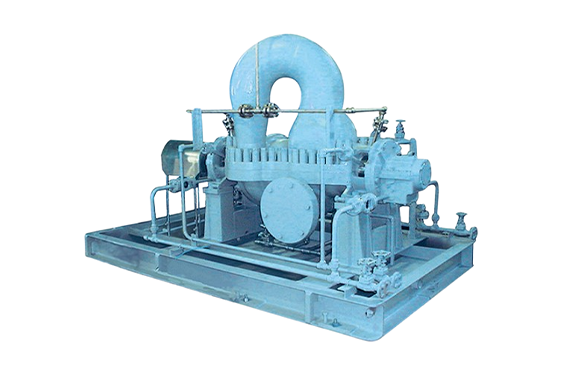

Shin Nippon RTH Axially Split Two-Stage Between Bearings Pump (API Class BB1)
Manufacturer: Shin Nippon Machinery Co., Ltd
Features
This is a heavy-duty pump conforming to API610 requirements.
Seal chamber
- Seal chamber dimensions fully conform to API682 and API610 standards, with installation of our own standard-dimension dual seals also supported.
Easy maintenance
- Overhaul can be performed without removal of main pipelines or drive assembly.
High reliability
- The double volute casing design and double suction impeller, as well as the impeller rear alignment arrangement, reduce the radial force and thrust force balance of the pump, achieving stable operation and prolonging bearing life.
Specifications
| Specification | Value |
|---|---|
| Maximum flow rate | 2000 m³/h |
| Maximum differential head | 650 m |
| Maximum operating temperature | 200°C |
