Shin Nippon Machinery Co.

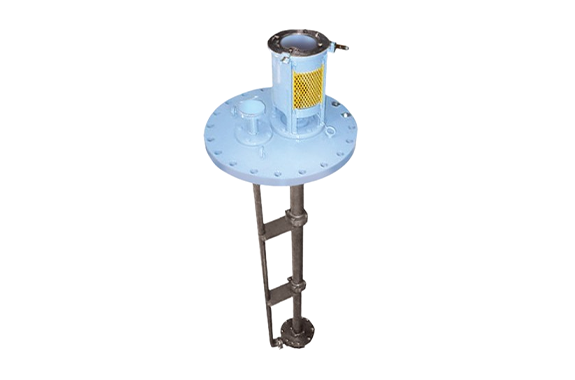

Shin Nippon SIW Line-Shaft Vertical Sump Pump (API Class VS4)
Manufacturer: Shin Nippon Machinery Co., Ltd
Features
- This is a heavy duty pump conforming to API610 requirements.
Seal chamber
- Seal chamber dimensions fully conform to API682 and API610 standards, with installation of our own standard-dimension dual seals also supported.
Easy startup and operation
- As this pump is usually under flooded suction, it avoids the need to eliminate priming water or air.
Easy maintenance
- Features a flanged spigot fit for casing and column in order to maintain alignment and facilitate easier maintenance.
High reliability
- A powerful driver mount design ensures stable pump operation.
Space-saving and easy to install
- The vertical pump configuration saves on valuable installation space. Shipment of the preassembled pump (excluding the driver) simplifies on-site installation work.
Specifications
| Specification | Value |
|---|---|
| Maximum flow rate | 400m³/h |
| Maximum differential head | 150 m |
| Maximum operating temperature | 250°C |
