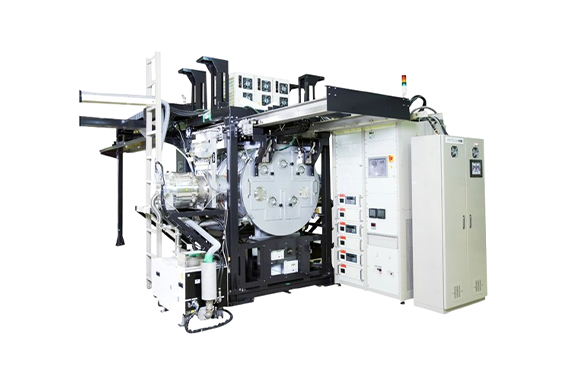

Shinko Seiki SDR Series Roll To Roll Sputtering System
Manufacturer: Shinko Seiki Co., Ltd.
Model: SDR Series
Specifications
| Model | SDR series |
|---|---|
| Substrate width | 300 ～ 1000 mm |
| Substrate thickness | 20 ～ 50 µm |
| Substrate winding diameter | φ 300 mm max. |
| Substrate core outer diameter | 6″ (≈ 150 mm) |
| Running speed | 0.5 ～ 20 m / min |
| Tension | 5 to 50 kgf / overall width |
| Sputter cathode pre-processing (Option) | 4 units max. |
※ Various types of resins films and metal foils are applicable as base materials.
