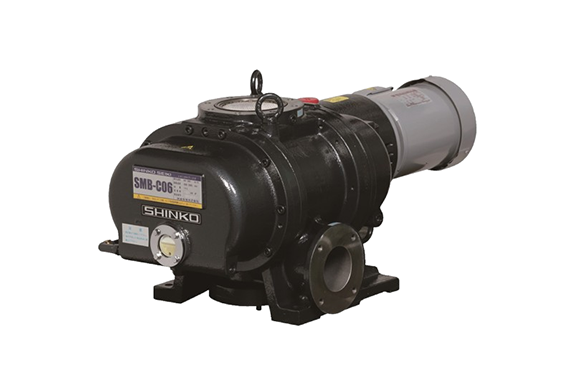

Shinko Seiki SMB Series Mechanical Booster Pumps
Manufacturer: Shinko Seiki Co., Ltd.
Model: SMB Series
Features
- Extremely high exhaust performance
- Easy operation and maintenance
- Long operating-life
- Compact body and low vibrations
- Produces clean vacuum.
- Safe horizontal posture
Specifications
SMB/SMB-C series

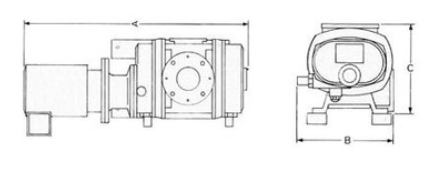

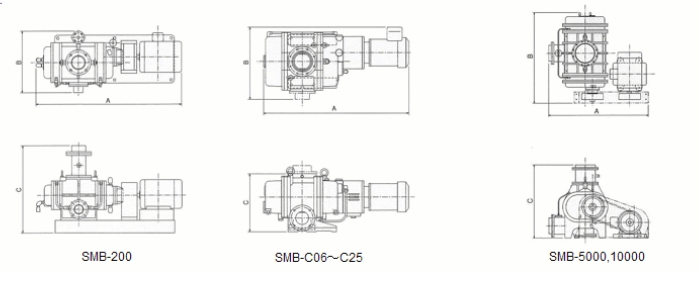

| Model | Pumping speed (m3/h) | Ultimate pressure (Pa) | Inlet side critical pressure (Pa) | Motor (kW) | Standard back pump model | Rotating speed (min−1) | Oil volume (L) | Min. cooling water (L/min) | Inlet port diameter | Outlet port diameter | Dimensions A×B×C (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||
| SMB−200 | 160 | 190 | 0.2 | 6.3 | 5.3 | 1.5 (4P) | SR−500 | 1450 | 1750 | 0.4 | 3 | VG80 | VF50 | 930×367×555 | 120 |
| 130 | 150 | 4.3×102 | 13.3 | 13.3 | 1.5 (4P) | SW−100Ⅱ | 2900 | 3500 | 0.5 | 3 | VG80 | VF80 | 898×447×360 | 160 | |
| SMB−C06 | 500 | 600 | 0.3 | 13.3 | 10.7 | 2.2 (2P) | SR−1500B | 2900 | 3500 | 1.2 | 3 | VG100 | VF80 | — | — |
| 500 | 600 | 3.3×102 | 13.3 | 10.7 | 3.7 (2P) | SW−300 | 2900 | 3500 | 1.2 | 3 | VG100 | VF80 | 898×447×360 | 160 | |
| SMB−C15 | 1250 | 1500 | 0.13 | 1.5 | 1.3 | 5.5 (4P) | SR−37BⅡ | 2900 | 3500 | 1.5 | 2 | VG150 | VF100 | 1075×527×470 | 270 |
| 1250 | 1500 | 0.13 | 1.5 | 1.3 | 5.5 (4P) | SMB−C06～SW−300 | 2900 | 3500 | 2.0 | 3 | VG150 | VF100 | 1075×527×470 | 270 | |
| SMB−C25 | 2100 | 2500 | 0.13 | 1.6 | 1.6 | 7.5 (4P) | SR−75BⅡ | 2900 | 3500 | 2 | 3 | VG200 | VF150 | 1246×574×500 | 400 |
| 2100 | 2500 | 0.13 | 1.6 | 1.6 | 7.5 (4P) | SMB−C06～SW−300 | 2900 | 3500 | 2 | 3 | VG200 | VF150 | 1246×574×500 | 400 | |
| SMB−5000 | 4800 | — | 0.13 | 2.7 | — | 11 (4P) | SRP−15000B | 1800 | — | 6 | 3 | VG250 | VF200 | 1400×1250×990 | 730 |
| 4400 | — | 0.11 | 1.3 | — | 15 (4P) | SMB−C15～SW−600Ⅲ | 1100 | — | 8 | — | VF350 | VF250 | — | — | |
| SMB−10000 | 10500 | — | 0.07 | 1.3 | — | 22 (4P) | SMB−C25～SRP−15000B | 1100 | — | 8 | — | VF350 | VF250 | 1665×1790×1175 | 2500 |
※ Weight: Motor weight is not included.
SMB-CM series
- SMB-C06M use a magnetic coupling, which enables the pumps be driven from atmospheric pressure.
SMB-D (DM) series (Aluminum direct-connection type booster pump)
- The SMB-D (DM) series is made of aluminum as the principal material, resulting in light weight.
- Using the magnetic coupling makes it possible to drive the pump from atmospheric pressure, resulting in approx. 50% reduction in exhaust time. (DM series)
| Model | Pumping speed (m3/h) | Ultimate pressure (Pa) | Inlet side critical pressure (Pa) | Motor (2P) (kW) | Standard back pump model | Rotational speed (min−1) | Oil volume (L) | Minimum cooling water volume (L/min) | Inlet port diameter | Outlet port diameter | Dimensions A×B×C (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||||||
| SMB−100D (SMB−100DM) | 75 | 90 | 102 | 4×103 | 0.75 | SVC−300 | 2900 | 3500 | 0.2 | 3 | VG50 | VF40 | 580×237×228 | 20.4 |
| 70 | 80 | 4×102 | 9.5×103 | SW−50 | ||||||||||
| SMB−300D (SMB−300DM) | 215 | 255 | 102 | 4×103 | 1.5 | SR−800 | 2900 | 3500 | 0.34 | 3 | VG80 | VF50 | 712×275×282 | 35.0 |
| 200 | 240 | 4×102 | 10.7×103 | SW−150 | ||||||||||
| SMB−600D (SMB−600DM) | 430 | 510 | 102 | 2×103 | 2.2 | SR−1500B | 2900 | 3500 | 0.6 | 3 | VG100 | VF80 | 780×353×342 | 57.6 |
| 400 | 480 | 4×102 | 9.5×103 | SW−300 | ||||||||||
※ Weight: Motor weight is not included.
※ Weight of the SMB-DM series is slightly higher than the above.
