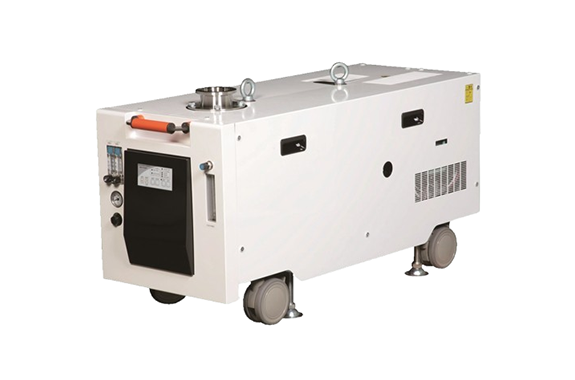

Shinko Seiki SSH Series Dry Vacuum Pumps

Manufacturer: Shinko Seiki Co., Ltd.
Model: SSH Series

Features

Powered by a high-efficiency brushless DC motor
Reduce starting current by controlling the rotational speed of the brushless DC motor.
Users can select between “POWER MODE” and “ECONOMY MODE” even in normal operation. (The operating mode can be changed while the pump is running.)
We achieve hertz-free by resolving difference in performance between 50 Hz and 60 Hz areas.
Economy & Ecology
Economy: The power-saving effect is approx. ￥64,000 per year.
Ecology: CO2 emissions can be reduced by approx. 1,400 kg per year.
※In comparison to an induction motor (Assuming approx. 9,000 hours running per year)
Built-in controller
The SSH series pumps incorporate a pump controller that provides various protective features. External control is also available.

Model		SSH100	SSH150	SSH200
Pumping speed (L/min)	POWER MODE	1300	2100	3000
Pumping speed (L/min)	ECONOMY MODE	1030	1710	2500
Ultimate pressure (Pa)	POWER MODE	0.8	0.7	0.6
Ultimate pressure (Pa)	ECONOMY MODE	1.0	0.9	0.9
Rotational speed (min^-1)	POWER MODE	3600	3600	3600
Rotational speed (min^-1)	ECONOMY MODE	3000	3000	3000
Maximum suction pressure (Pa)		1×10⁵ (Atmospheric pressure)
Motor capacity (kW)		3.7	5.5	7.5
Inlet port		NW50		NW80
Outlet port			NW40
Lubricating oil	Type of lubricating oil	NEOVAC EP-83
	Lubricating oil volume (L)	1	1.1	1.1
	Type of grease	Vacuum grease
	Grease volume (g)	40	50	50
Weight (kg)		240	310	400
Utilities
Power supply		3 phase 200～220/200～230V, 50/60Hz
Rated capacity (kVA)		5.5	9.1	12.2
Cooling water	Supply pressure (MPaG)	0.1～0.3
	Flowrate (L/min)	5		7
	Water supply temperature (°C)	5～30
	Connection diameter	Rc 3/8
N2 gas	Supply pressure (MPaG)	0.1～0.5
	Flowrate (L/min)	0～0.1
	Seal gas (L/min)	0～5
	Purge gas (L/min)	0～50
Connection diameter		Rc 3/8
