SHINKO SEIKI CO.

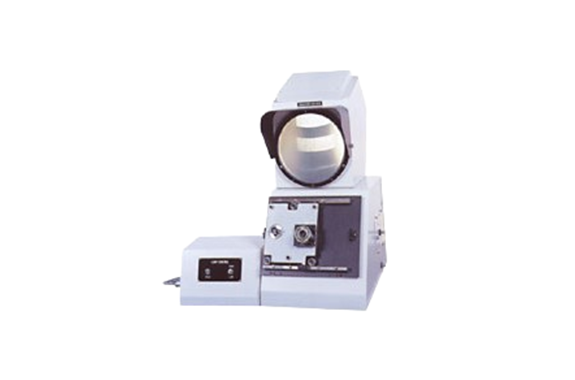

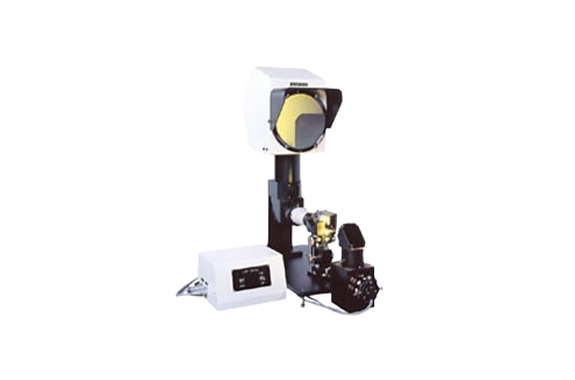

Shinko Seiki ST Series Bearing Chamfer Measuring Projector
Manufacturer: Shinko Seiki Co., Ltd.
Model: ST Series
Features
- Model SL-205LT allows direct readings of inner chamfer diameter dimensions with its scaled screen.
- Models ST-200HN and ST-205LT are equipped with each one piece of 20×lens as a standard accessory.
- Screen diameter of 200mm is a compact and simple design.
- Using halogen lamps and high precision projection lenses, the projector produces sharp and clear projection images.
- One-touch inspections of bearing are made possible with specialized tools by installing the projector in bearing manufacturing line.
Specifications
| Model | ST-200HN | ST-205LN |
|---|---|---|
| Screen | φ200 mm inverted image | φ200 mm erect image |
| Lens | with 20X lens | with 20X lens |
| Magnification precisions | Contour illumination: ±0.15% | Surface illumination: ±0.25% |
| Stage | with a ring retainer Traveling range: X&Z: 50mm Y: 30mm | Sliding system |
| Primary side power source | AC100V~110V | 220~240V |
| Light source | 15 V, 10A, 150 W Halogen lamp | 24 V, 12.5A, 300 W Halogen lamp |
| Power source dimensions | 150 (H) × 240 (W) × 240 (D) mm | 150 (H) × 240 (W) × 240 (D) mm |
| Weight of the power source | 6kg | 9kg |
| Weight of the main body | 52kg | 50kg |
