SHINKO SEIKI CO.
Shinko Seiki Valve (Vacuum Valve)
Manufacturer: Shinko Seiki Co., Ltd.
Specifications

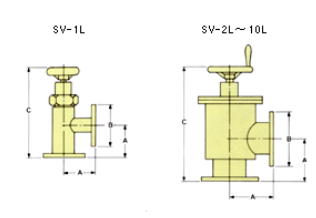

SV-L series
| Model | A | B | C |
|---|---|---|---|
| SV-1L | 65 | 90 | 186 |
| SV-2L | 90 | 120 | 234 |
| SV-3L | 120 | 160 | 288 |
| SV-4L | 130 | 185 | 324 |
| SV-6L | 160 | 235 | 391.5 |
| SV-8L | 200 | 300 | 497 |
| SV-10L | 230 | 350 | 602 |
- Manual high-vacuum valve
- L-shaped valve (Standard shape of vacuum valve)

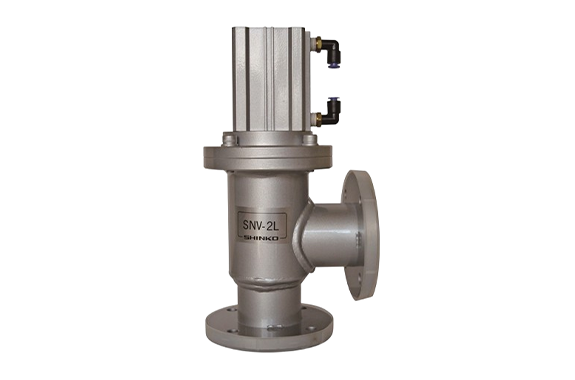

SNV-L series
- Pneumatic high-vacuum valve
- L-shaped valve (Standard shape of vacuum valve)
- The solenoid valve voltage can be arbitrarily selected.
- As an optional accessory, an opening/closing operation switch available.
- Explosion-proof types are also available.

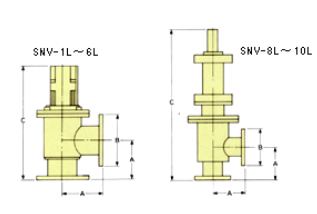

| Model | A | B | C |
|---|---|---|---|
| SNV-1L | 65 | 90 | 207.5 |
| SNV-2L | 90 | 120 | 278.5 |
| SNV-3L | 120 | 160 | 349 |
| SNV-4L | 130 | 185 | 410.5 |
| SNV-6L | 160 | 235 | 478 |
| SNV-8L | 200 | 300 | 853 |
| SNV-10L | 230 | 350 | 1080 |
