Showa Measuring Instruments N22-FA Series Strain Gages Accessories For normal temperature (FA type)

Made in Japan
Manufacturer: SHOWA MEASURING INSTRUMENTS Co., Ltd.

ModelN22-FA-1-120-(11)-VS03N22-FA-1-120-(11)-VS1N22-FA-1-120-(11)-VS3N22-FA-1-120-(11)-VS5
N22-FA-2-120-(11)-VS03N22-FA-2-120-(11)-VS1N22-FA-2-120-(11)-VS3N22-FA-2-120-(11)-VS5
N22-FA-5-120-(11)-VS03N22-FA-5-120-(11)-VS1N22-FA-5-120-(11)-VS3N22-FA-5-120-(11)-VS5

Features

In our modern society, machines and structures are essential for safe, smooth living, requiring confirmed functionality and safety. Strain gages are key sensors that detect and measure strain and stress, ensuring these facilities remain safe.Strain gages, fundamental sensors for detecting and measuring strain and stress, play a key role in ensuring the safety of these facilities.

The history of strain gages dates back to 1938 when Simmons & Ruge first designed bonded type strain gages in America. In 1962, SHOWA Company began manufacturing foil grid type strain gages in Japan, marking the first of its kind. These devices are essential for assessing the strength and properties of materials like metals, rubber, plastics, and ceramics used daily.

For normal temperature (FA type)

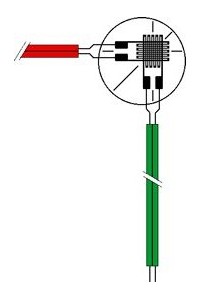

Strain Gage Pattern
Type
Nominal Resistance(Ω)
Apporox Gage Fator
Dimension(mm)
Leadwire Length(m)
Grid
Base
Length
Width
Length
Width
showaN22-FA-1-120-(11)-VS03
120
2.0
1.0
1.5
Φ6.0
0.3
N22-FA-1-120-(11)-VS1
120
2.0
1.0
1.5
Φ6.0
1.0
N22-FA-1-120-(11)-VS3
120
2.0
1.0
1.5
Φ6.0
3.0
N22-FA-1-120-(11)-VS5
120
2.0
1.0
1.5
Φ6.0
5.0
N22-FA-2-120-(11)-VS03
120
2.0
2.0
1.6
Φ8.0
0.3
N22-FA-2-120-(11)-VS1
120
2.0
2.0
1.6
Φ8.0
1.0
N22-FA-2-120-(11)-VS3
120
2.0
2.0
1.6
Φ8.0
3.0
N22-FA-2-120-(11)-VS5
120
2.0
2.0
1.6
Φ8.0
5.0
N22-FA-5-120-(11)-VS03
120
2.1
5.0
1.8
Φ11.0
0.3
N22-FA-5-120-(11)-VS1
120
2.1
5.0
1.8
Φ11.0
1.0
N22-FA-5-120-(11)-VS3
120
2.1
5.0
1.8
Φ11.0
3.0
N22-FA-5-120-(11)-VS5
120
2.1
5.0
1.8
Φ11.0
5.0
