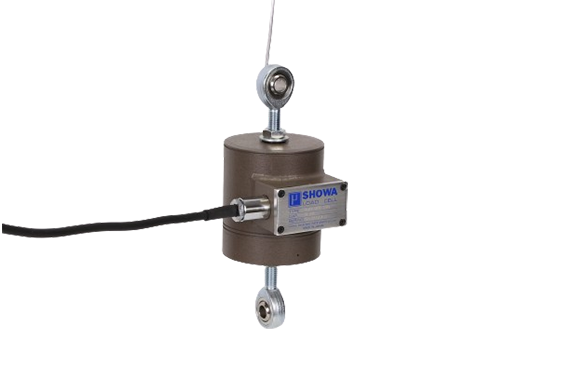

- Showa Measuring Instruments RTU-S2B JCSS-calibration-compliant Load Cells For Force Testers
Japan, Showa Measuring Instruments
Showa Measuring Instruments RTU-S2B JCSS-calibration-compliant Load Cells For Force Testers
Made in Japan
Manufacturer: SHOWA MEASURING INSTRUMENTS Co., Ltd.
Model: RTU-S2B
Features
- Suitable for verification in uniaxial compression testing machines (50 N to 200 KN)
- JCSS 0.5 class compliant*1

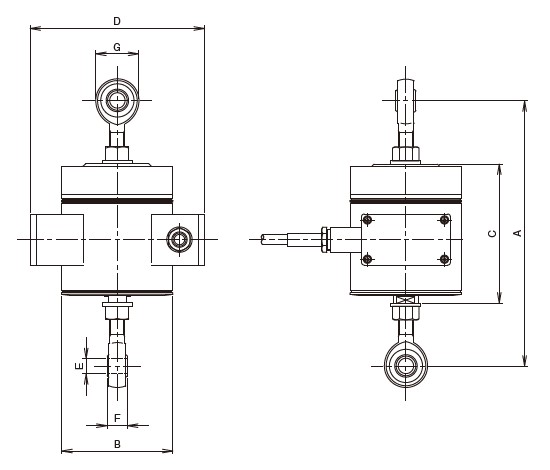

Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)
| Model | Capacity | A | B | C | D | E | F | G | Weight |
|---|---|---|---|---|---|---|---|---|---|
| RTU-50N-S2B | 50 N | 209 | Φ88 | 109 | 69 | Φ12 | 16 | 34 | 3.6 kg |
| RTU-100N-S2B | 100 N | 209 | Φ88 | 109 | 69 | Φ12 | 16 | 34 | 3.6 kg |
| RTU-200N-S2B | 200 N | 209 | Φ88 | 109 | 69 | Φ12 | 16 | 34 | 3.6 kg |
| RTU-500N-S2B | 500 N | 209 | Φ88 | 109 | 69 | Φ12 | 16 | 34 | 3.6 kg |
| RTU-1KN-S2B | 1 KN | 209 | Φ88 | 109 | 69 | Φ12 | 16 | 34 | 3.6 kg |
| RTU-2KN-S2B | 2 KN | 210 | Φ88 | 110 | 138 | Φ12 | 16 | 34 | 3.9 kg |
| RTU-5KN-S2B | 5 KN | 210 | Φ88 | 110 | 138 | Φ12 | 16 | 34 | 4.7 kg |
| RTU-10KN-S2B | 10 KN | 240 | Φ88 | 150 | 180 | Φ12 | 16 | 34 | 5.0 kg |
| RTU-20KN-S2B | 20 KN | 255 | Φ88 | 150 | 180 | Φ18 | 20 | 43 | 5.4 kg |
| RTU-50KN-S2B | 50 KN | 320 | Φ100 | 180 | 190 | Φ25 | 35 | 70 | 10 kg |
| RTU-100KN-S2B | 100 KN | 496 | Φ139 | 250 | 239 | Φ40 | 43 | 100 | 24 kg |
| RTU-200KN-S2B | 200 KN | 647 | Φ164 | 315 | 266 | Φ50 | 53 | 120 | 42 kg |
Specifications
| Safe Overload | 150 %R.C. |
|---|---|
| Rated Output | 2 mV/V±1% |
| Nonlinearity | 0.03 %R.O. |
| Hysteresis | 0.03 %R.O. |
| Repeatability | 0.02 %R.O. |
| Excitation Voltage | 10 V (or less) |
| Safe Excitation Voltage | 20 V |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | 0～40 ℃ |
| Safe Temp.Range | -10～60 ℃ |
| Temp.Effect on Zero | 0.003 %R.O./℃ |
| Temp.Effect on Output | 0.003 %/℃ |
| Cable | Φ8 mm – 6-conductor shielded cable 5 m, bare end |
