Showa Precision Industries Clamp Bolt For Face Mill Arbor (Without Steps)
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: MBA-M-F Series
Specifications
| MODEL | L | L1 | L2 | φC | G |
|---|---|---|---|---|---|
| MBA-M8F | 23 | 18 | 7 | 20 | M8 × P1.25 |
| MBA-M10F | 31 | 22 | 9 | 28 | M10 × P1.5 |
| MBA-M12F | 35 | 25 | 10 | 33 | M12 × P1.75 |
| MBA-M16F | 40 | 30 | 10 | 40 | M16 × P2.0 |
| MBA-M20F | 50 | 36 | 14 | 50 | M20 × P2.5 |

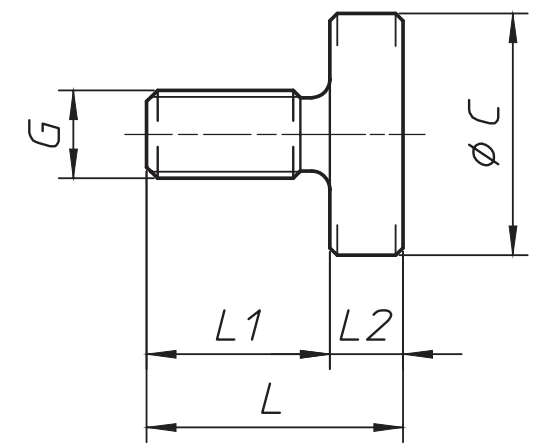

External Dimensions
