SHOWA PRECISION INDUSTRIES

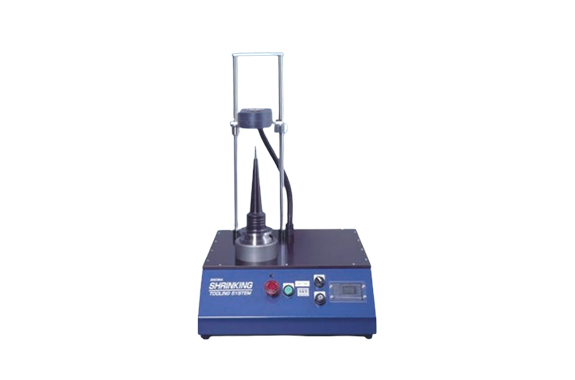

Showa Precision Industries High-frequency Induction Heater SF-DRU-1.2KT
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: SF-DRU-1.2KT
Features
- Lightweight, compact shrinking tooling system that is both user-friendlyand eco-frindly and can be used anywhere the single included standard.
- Coil enables cemented carbide cutting tools with a shank diameter of 4 to 12mm to be mounted.
- The only operation required is to set the appropriate heating time for the tool holder.
Specifications
| Item | Specification |
|---|---|
| Model | SF-DRU-1.2KT |
| Dimensions | 480mm (W) × 500mm (L) × 790mm (H) |
| High-frequency output | 1200W |
| Input power supply | AC200V 50/60Hz |
| Power supply capacity | 10A |
| Weight | About 20kg |
| Applicable holder shank shape | BT40・50 / HSK-63・100 |
| Applicable holder size | SF04 to SF20 (New slimtype, Ttype holders) |
| Applicable tool shank diameter | φ4 to φ20 / tolerance within h6 |
| Included standard coils (1 type) | For SF04 to SF20 |
| Tool insertion and removal direction | Upward |
| Upward raising & lowering stroke | Manual type: 400mm |
