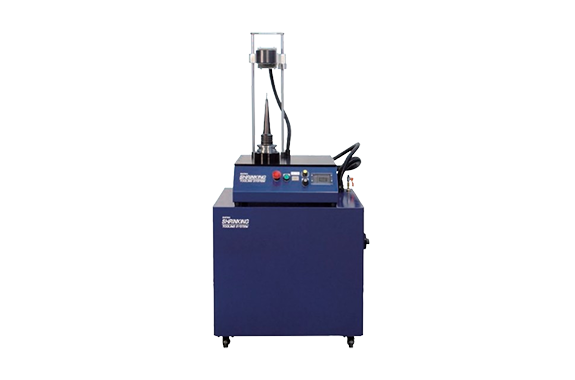

Showa Precision Industries High-frequency Induction Heater SF-DRU-S15K
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: SF-DRU-15K
Features
- Heating and cooling times for each holder (standard) are set by the sequencer.
- Settings for special holders are also possible
Specifications
| Item | Specification |
|---|---|
| Model | SF-DRU-S15K |
| Dimensions | 690mm (W) × 550mm (L) × 1445mm (H) |
| High-frequency output | 15KW |
| Input power supply | AC200V 3-phase |
| Power supply capacity | 60A (18KVA) [at max. output] |
| Air source | For coil cooling ※optional (For on-machine tooling cooling) |
| Air capacity | 0.4MPa (200L/min) |
| Weight | About 80kg |
| Applicable holder shank shape | BT40・50 / HSK-63・100 |
| Applicable holder size | SF04 to SF50.8 (regular type holders, etc.) |
| Applicable tool shank diameter | φ4 to φ12 / h6 tolerance ※optional (φ16 to φ50.8) |
| Included standard coils (3 types) | For SF04 to SF12 |
| Tool insertion and removal direction | Upward |
| Upward raising & lowering stroke | Manual type: 450mm ※optional: 700mm max |
