SHOWA PRECISION INDUSTRIES

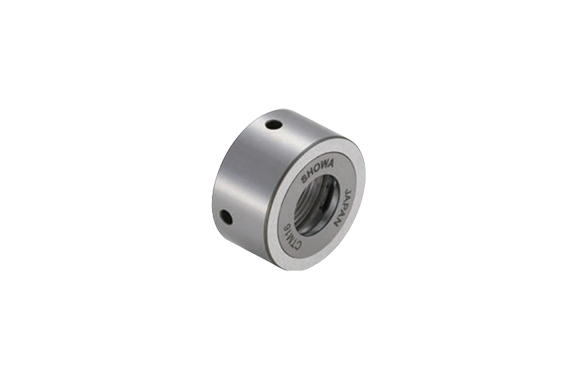

Showa Precision Industries NUT (For CTM Type)
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: NUT-CTM-H / NUT-CTM-OH Series
Specifications
■ Standard use
| MODEL | M | ΦC | H | CTM No. | N/W (kg) |
|---|---|---|---|---|---|
| NUT-CTM07H | M14 × 0.75 | 23 | 15 | 0.07 | 0.10 |
| NUT-CTM10H | M22 × 1.5 | 32 | 20 | 0.10 | 0.15 |
| NUT-CTM13H | M26 × 1.5 | 36 | 22 | 0.25 | 0.18 |
| NUT-CTM16H | M32 × 1.5 | 44 | 23 | 0.40 | 0.20 |
| NUT-CTM20H | M40 × 1.5 | 52 | 25 | 0.60 | 0.21 |
■ Through-Coolant use
| MODEL | M | ΦC | H | CTM No. | N/W (kg) |
|---|---|---|---|---|---|
| NUT-CTM10-OH | M22 × 1.5 | 32 | 20 | CTM10(G) | 0.15 |
| NUT-CTM13-OH | M26 × 1.5 | 36 | 22 | CTM13(G) | 0.18 |
| NUT-CTM16-OH | M32 × 1.5 | 44 | 23 | CTM16(G) | 0.20 |
| NUT-CTM20-OH | M40 × 1.5 | 52 | 25 | CTM20(G) | 0.21 |
