Features

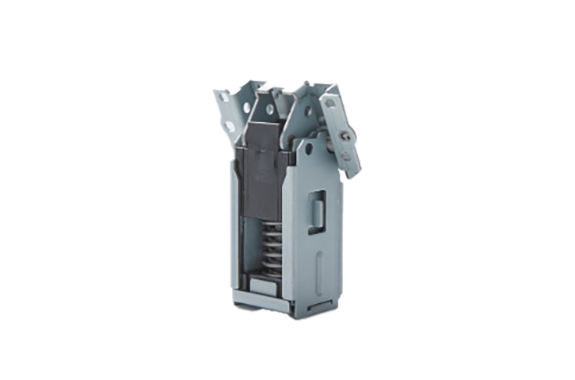

• ・High torque hinges are use to improve the operator’s operational feel when opening and closing various pressure plates (lids) in industrial equipment.
• ・The pressure plate (lid) is heavy, so it must balance with the spring load of the opening and closing device over almost the entire range of opening and closing angles, and must remain stationary at any angle (free stop function).
• – Caps can tightly closd with a constant pressure on objects of different thicknesses.
• ・Can be used for everything from paper to books, and thicknesses from 0 to 50 mm are available (thicknesses over 50 mm are available upon request)
• – A high torque hinge adapted to the heavy load of the ADF (Auto Document Feeder) on top of a copier.
• ・Custom orders with stopper function and earth plate are also available.
• ・Lift-up compatible (30mm)
• – All resin parts are make of engineering plastic (RoHS compliant: black)
• ・The exterior color is basically plated white, but custom orders are also possible.
• ・Shimonishi Giken Kogyo’s high torque hinges are often use in copiers.
